CXP824P40A

Features:

• Wide-range instruction system (213 instructions) to cover various types of data
- 16-bit arithmetic/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 400ns at 10MHz operation 122µs at 32kHz operation
• Incorporated PROM capacity 40K bytes
• Incorporated RAM capacity 1120 bytes (including fluorescent display area)
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive approximation method (Conversion time of 32µs/10MHz)
- Serial interface Incorporated 8-bit, 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel 8-bit clock sync type, 1 channel
- Timers 8-bit timer, 8-bit timer/counter, 19-bit time base timer 16-bit capture timer/counter, 32kHz timer/counter
- Fluorescent display tube controller/driver Maximum of 384 segments display possible 1 to 16-digit dynamic display Dimmer function High voltage drive output (40V) On-chip pull-down resistor (Mask option) Hardware key scan function (Maximum of 16*8 key matrix compatible)
- Remote control receiving circuit Incorporated noise elimination circuit 8-bit measurement counter with on-chip 6 stage FIFO
- PWM output 14 bits, 1 channel
- CTL duty detection circuit
- High-speed output circuit RTG 4 pins
• Interruption 19 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP

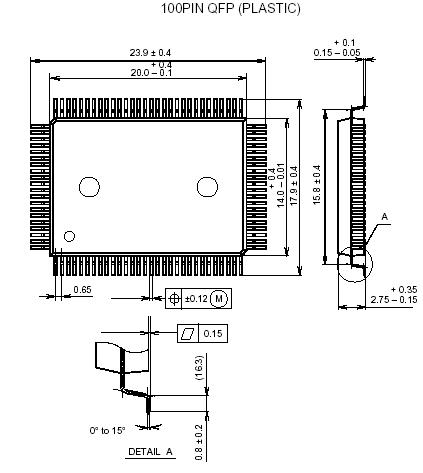

• Package 100-pin plastic QFP

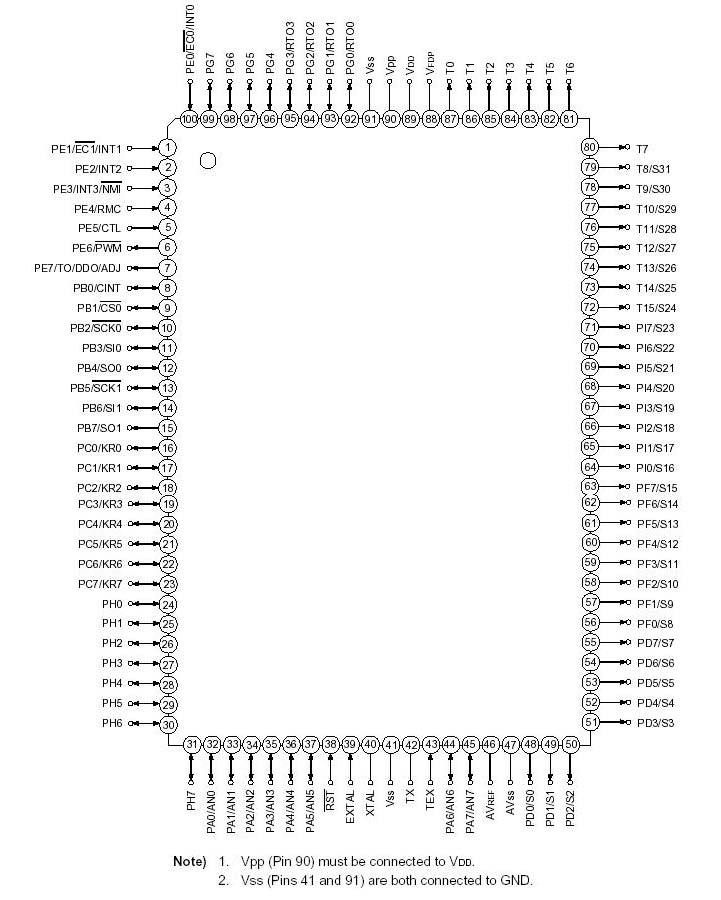

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	Vpp	0.3 to +13.0	V	Incorporated PROM
	AVss	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
Display output voltage	VOD	VDD 40 to VDD + 0.3	V	As P channel transistor is open drain, VDD voltage is determined as reference.
High level output current	IOH	5	mA	Other than display putput pins*2(value per pin)
	IODH1	15	mA	Display output S0 to S23(value per pin)
	IODH2	35	mA	Display output T0 to T7 T8/S31 to T15/S24: per pin
High level total output current	IOH	40	mA	Total of other than display output pins
	IODH	100	mA	Total of all output pins
Low level output current	IOL	15	mA	Port 1
	IOLC	20	mA	High current Port 1*3
Low level total output current	IOL	100	mA	Total for all output pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP824P40A is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer counter, fluorescent display tube, controller/driver, remote control reception circuit, CTL duty detection circuit, 14-bit PWM output and highspeed output circuit besides the basic configurations of 8-bit CPU, PROM, RAM, and I/O port.

The CXP824P40A also provides sleep/stop function that enables lower power consumption. CXP824P40A is the PROM-incorporated version of the CXP82440A with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
