Product Details

Description



Features:

• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (3.0 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available.)
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 20µs at 16MHz)
- Serial interface Srart-stop synchronization (UART), 1 channel Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit, 10-stage FIFO (Auto transfer for 1 to 10 bytes), 1 channel 8-bit clock synctype (MSB/LSB first selectable), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,16-bit capture timer/counter, 32kHz timer/counter
- I2C bus interface
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
- PWM output circuit 12 bits, 2 channels
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin ceramic PQFP


Pinout

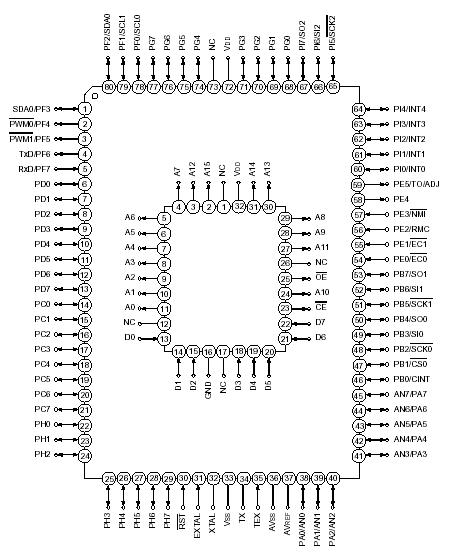

Connection Diagram


Description

The CXP84600 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP84632/84640/84648.
