CXP846P48

Features:

• Wide range instruction system (213 instructions) to cover various of data.
- 16-bit arithmetic/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V) 333ns at 12MHz operation (3.0 to 5.5V) 122µs at 32kHz operation (2.7 to 5.5V)
• Incorporated PROM capacity 48K bytes
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time 20µs/16MHz)
- Serial interface Srart-stop synchronization (UART), 1 channel Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit, 10-stage FIFO
(Auto transfer for 1 to 10 bytes), 1 channel 8-bit clock syncronization (MSB/LSB first selectable), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,16-bit capture timer/counter, 32kHz timer/counter
- I²C bus interface
- Remote control reception circuit 8-bit pulse measurement counter, 6-stage FIFO
- PWM output circuit 12 bits, 2 channels
• Interruption 21 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 80-pin plastic QFP
• Piggyback/evaluation chip CXP84600 80-pin ceramic QFP

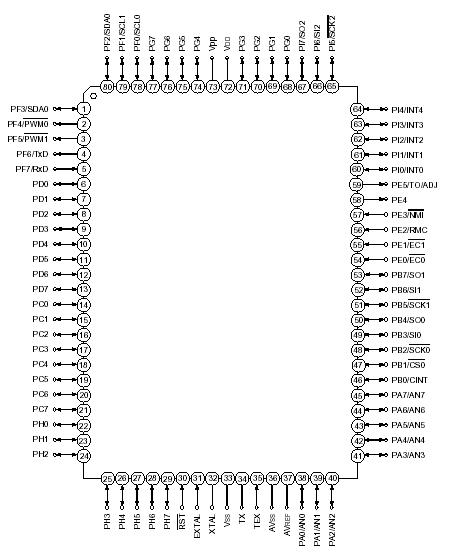

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*1	V
Output voltage	VOUT	0.3 to +7.0*1	V
High level output current	IOH	5	mA	Output (value per pin)
High level total output current	IOH	50	mA	Total of all output pins
Low level output current	IOL	15	mA	Pins excluding large current outputs (value per pin)
	IOLC	20	mA	Large current output ports (value per pin*2)
Low level total output current	IOL	130	mA	Total for all outputs
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP846P48 is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, I²C bus interface, remote control reception circuit, PWM output, and 32kHz timer/counter besides the basic configurations of 8-bit CPU, PROM, RAM, and I/O port.
The CXP846P48 also provides a sleep/stop function that enables lower power consumption.
The CXP846P48 is the PROM-incorporated version of the CXP846P48 with built-in mask ROM. This provides the additional feature of being able to write directly into the program, Thus, it is most suitable for evaluation use during system development and for small-quantity production.
