Features:

• A wide instruction set (213 instructions) which covers various types of data.
-16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 333ns at 12MHz operation (3.0 to 5.5V) 250ns at 16MHz operation (4.5 to 5.5V)
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available.)
• Incorporated RAM capacity 2144 bytes
• Peripheral functions
- A/D converter 8 bits, 8 channels, successive approximation method (Conversion time of 1.6µs/16MHz)
- Serial interface Start-stop sync type (UART), 1 channel Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 2 channels 8-bit clock sync type (MSB/LSB first selectable), 1 channel
- Timer 8-bit timer, 8-bit timer/counter,19-bit time base timer, 16-bit capture timer/counter
- High precision timing pattern generator PPG: maximum of 11-pins, 16-stages programmable, 2 channels
- PWM output 8 bits, 8 channels
- FRC capture unit Incorporated 24-bit and 6-stage FIFO
• Interruption 19 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin ceramic PQFP


Pinout

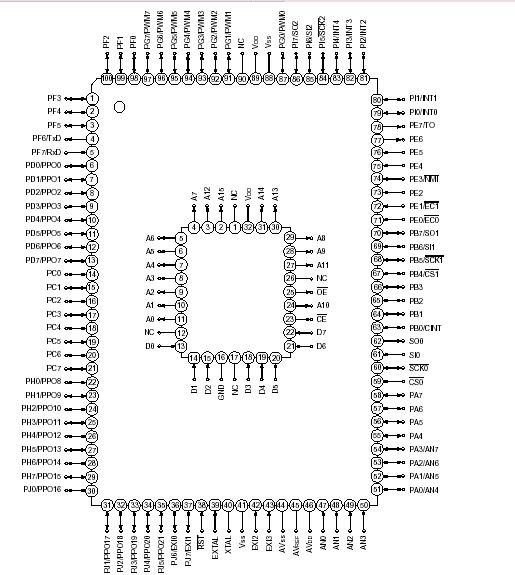

Connection Diagram


Description

The CXP84700 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type,which is developed for evaluating the function of the CXP84716/84720/84724.
