CXP861P16

Features:

• Instruction set which supports a wide array of data types 213 types
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation
• Minimum instruction cycle During operation 400ns/instruction 10MHz
• Incorporated PROM capacity 16K bytes
• Incorporated RAM capacity 576 bytes
• Peripheral functions
- A/D converter 8-bit, 8-channel, successive comparison type (conversion time: 32µs at 10MHz)
- Serial interface Universal Asynchronous Receiver Transmitter (baud-rate generator incorporated) 8-bit clock synchronized type
- Stepping motor controller 2-channel stepping motor excitation output
- PWM output 2-channel 12-bit output
- Timer 2-channel 16-bit capture timer/counter 2-channel 16-bit timer/counter (step rate generation function incorporated) 19-bit time-base timer
- Watchdog timer
• Interrupts 17 factors, 15 vectors, multiple interrupt processing
• Standby mode SLEEP/STOP
• Package 80-pin plastic QFP

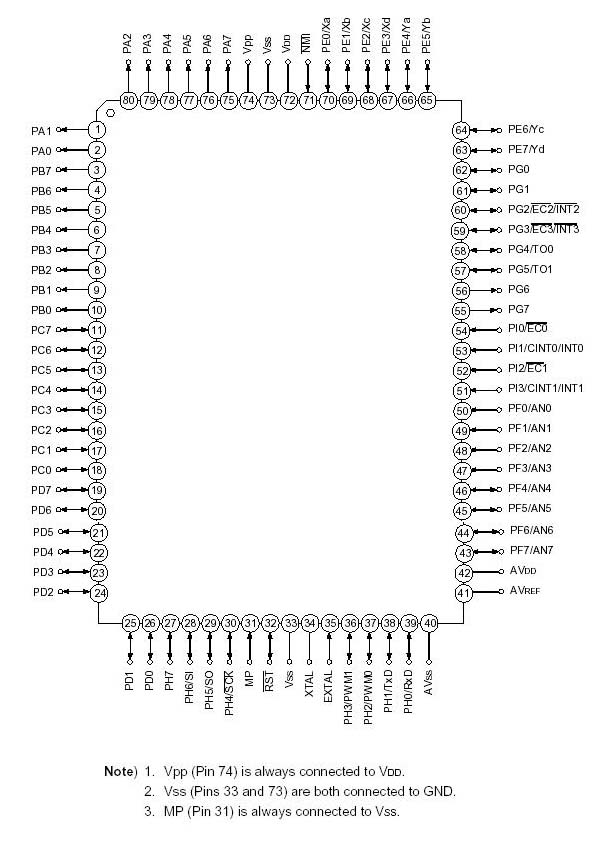

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	Vpp	0.3 to +13.0	V	Incorporated PROM
	AVDD	AVSS to +7.0*1	V
	AVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*2	V
Output voltage	VOUT	0.3 to +7.0*2	V
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total for all output pins
Low level output current	IOL	15	mA	General purpose port 1 pins*2
	IOLC	20	mA	High current port 1 pins*3
Low level total output current	IOL	130	mA	Total for all output pins
Operating temperature	Topr	10 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW

Description

The CXP861P16 is a highly integrated CMOS 8-bit single-chip microcomputer which is mainly composed of an 8-bit CPU, PROM, RAM and I/O ports. This microcomputer features many other highperformance circuits in a single-chip CMOS design, including an A/D converter, clock synchronized serial interface, UART, stepping motor controller, PWM generator, 16-bit timer/counter, and watchdog timer.
Also, the CXP861P16 provides the power-on reset function as well as the sleep/stop function which enables to lower power consumption.
This IC is the PROM-incorporated version of the CXP86116 with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for smallquantity production.
