CXP87400

Features: • A wide instruction set (213 instructions) which cover various types of data. 16-bit operation/multiplication and division/boolean bit operation instructions• Minimum instruction cycle 333ns at 12MHz operation (3.0 to 5.5V) 250ns at 16MHz operation (4.5 to 5.5V)• Appli...

product image

CXP87400 Picture
See larger image
SeekIC No. : 004319012 Detail

CXP87400: Features: • A wide instruction set (213 instructions) which cover various types of data. 16-bit operation/multiplication and division/boolean bit operation instructions• Minimum instruct...

CXP87400 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXP87400
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data.
16-bit operation/multiplication and division/boolean bit operation instructions
• Minimum instruction cycle 333ns at 12MHz operation (3.0 to 5.5V) 250ns at 16MHz operation (4.5 to 5.5V)
• Applicable EPROM LCC type 27C256, LCC type 27C512 (Maximum 60Kbytes are available.)
• Incorporated RAM capacity 1568 bytes
• Peripheral functions
A/D converter 8-bit, 12-channel, successive approximation method (Conversion time of 20µs/16MHz)
Serial interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
Timer 8-bit timer 8-bit timer/counter 19-bit time base timer
High precision timing pattern generator PPG 19-pin, 32-stage programmable PPG 10-pin, 21-stage programmable RTG 5 pins, 2 channels
PWM/DA gate output PWM output 12 bits, 2 channels (Repetitive frequency 62.5kHz/16MHz) DA gate pulse output 12 bits, 4 channels
Servo input control Capstan FG, drum FG/PG, CTL input
VSYNC separator
FRC capture unit Incorporated 26-bit and 8-stage FIFO
PWM output 14 bits, 1 channel
General purpose prescaler 10 bits (system clock asynchronous type)
Pulse cycle measurement circuit
• Interruption 18 factors, 14 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP


Pinout

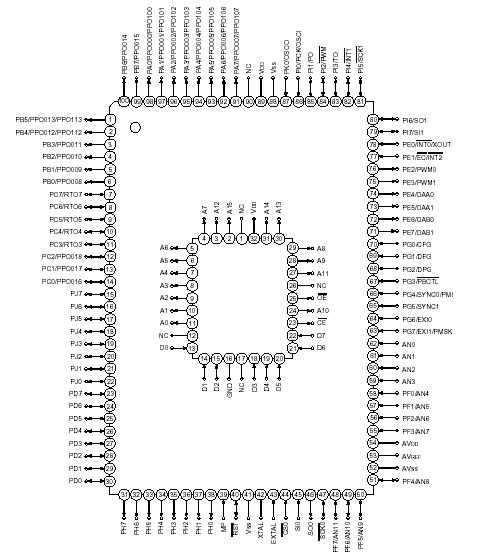

Connection Diagram


Description

The CXP87400 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP87452/87460.
