CXP87452

Features:

• A wide instruction set (213 instructions) which cover various types of data
- 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction
• Minimum instruction cycle During operation 333ns/12MHz (3.0 to 5.5V) During operation 250ns/16MHz (4.5 to 5.5V)
• Incorporated ROM capacity 52K bytes (CXP87452) 60K bytes (CXP87460)
• Incorporated RAM capacity 1568 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation system (Conversion time: 20µs/16MHz)
- Serial interface Incorporated buffer RAM (1 to 32 bytes auto transfer) 1-channel Incorporated 8-bit and 8-stage FIFO (1 to 8 bytes auto transfer) 1-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
- High precision timing pattern generator PPG 19 pins 32-stage programmable PPG 10 pins 21-stage programmable RTG 5 pins 2-channel
- PWM/DA gate output PWM 12-bit, 2-channel (Repetitive frequency 62.5kHz/16MHz) DA gate pulse 12-bit, 4-channel
- Servo input control Capstan FG, Drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14-bit, 1-channel
- General purpose prescaler 10-bit (System clock asynchronous)
- Pulse cycle measurement circuit
• Interruption 18 factors, 14 vectors, multi-interruption possible
• Standby mode SLEEP/STOP

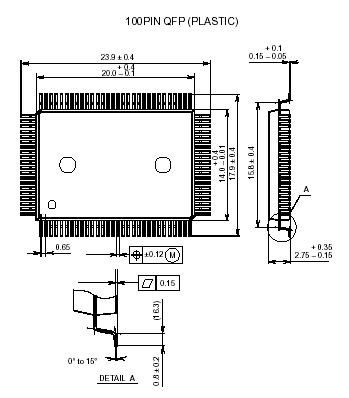

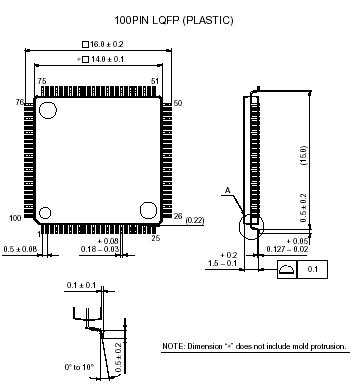

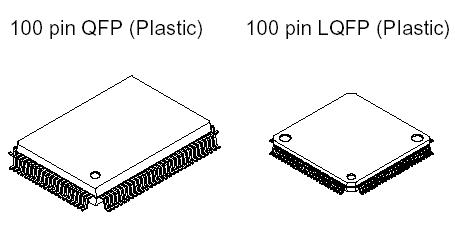

• Package 100-pin plastic QFP/LQFP
• Piggyback/evaluation chip CXP87400 100-pin ceramic QFP/LQFP

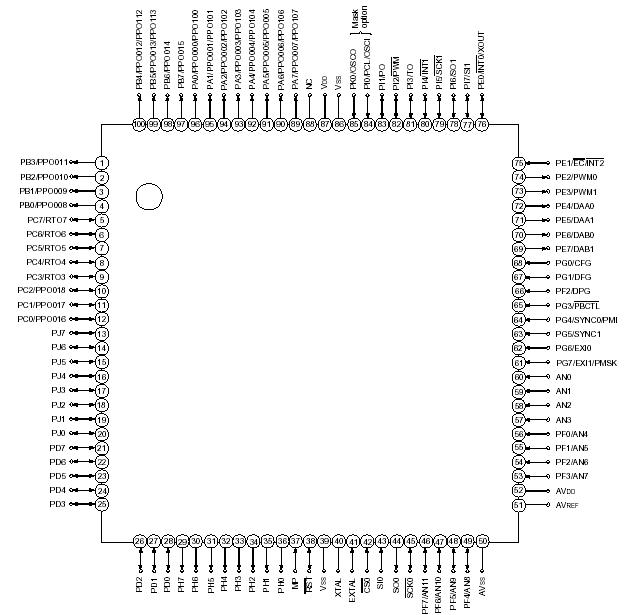

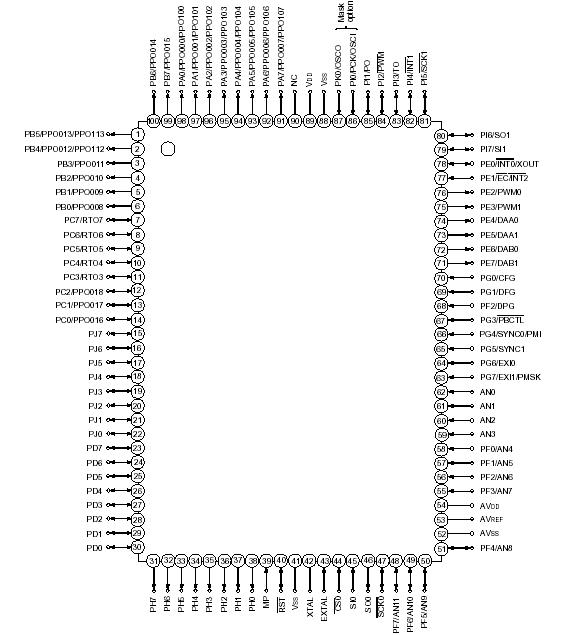

Pinout

Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +7.0	V
	AVDD	AVss to +7.0*1	V
	AVSS	0.3 to +0.3	V
	AMPVDD	AMPVSS to +7.0*2	V
	AMPVSS	0.3 to +0.3	V
Input voltage	VIN	0.3 to +7.0*2	V
Output voltage	VOUT	0.3 to +7.0*2	V
Medium drive output voltage	VOUTP	0.3 to +15.0	V	Port PH
High level output current	IOH	5	mA
High level total output current	IOH	50	mA	Total of output pins
Low level output current	IOL	15	mA	Other than large current output ports (value per pin)
	IOLC	20	mA	Large current output pin*3: per pin
Low level total output current	IOL	130	mA	Total of output pins
Operating temperature	Topr	20 to +75	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	600	mW	QFP
		380		LQFP

Description

The CXP87452/87460 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface (2ch independently), timer/counter, time base timer, vector interruption, high precision timing pattern generation circuit (PPG 2ch independently, RTG 2ch independently), PWM generator, general purpose prescaler, PWM for tuner, VCR vertical sync separation circuit and the measuring circuit which measure signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also CXP87452/87460 provides power on reset function, sleep/stop function which enables to lower power consumption .
