Purchase CXP87540, In-stock CXP87540 From SeekIC.
MFG:SANSYO D/C:00
Part Number: CXP87540
MFG: SANSYO
D/C: 00
Description: The CXP87532/87540 is a CMOS 8-bit microcomputer which consists of arithmetic coprocessor, A/D converter, serial interf...
- Table of contents:
CXP87540
-
Suppliers
DataSheet
General Description
CXP87540 General Description
The CXP87532/87540 is a CMOS 8-bit microcomputer which consists of arithmetic coprocessor, A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuit, PWM generator and the measuring circuit which measures signals of capstan FG, drum FG/PG, reel FG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port. They are integrated into a single chip.
Also this IC provides power on reset function, sleep/stop function which enables to lower power consumption.
CXP87540 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | Incorporated PROM |
| AVDD | AVss to +7.0*1 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| Input voltage | VIN | 0.3 to +7.0*2 | V | |
| Output voltage | VOUT | 0.3 to +7.0*2 | mA | PH pin |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of output pins |
| Low level output current | IOL | 15 | mA | Other than large current output ports (value per pin) |
| IOLC | 20 | mA | Large current output pin*3: per pin | |
| Low level total output current | IOL | 130 | mA | Total of output pins |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW | QFP package |
| 380 | LQFP package |
CXP87540 Features
• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation multiplycation and division/boolean bit operation instructions
• Minimum instruction cycle During operation 326ns/12.288MHz
• Incorporated ROM capacity 32K bytes (CXP87532) 40K bytes (CXP87540)
• Incorporated RAM capacity 1344 bytes
• Peripheral functions
- Arithmetic coprocessor Multiplying with code, sum of products with code, high speed execution of many bits shift rotation operation
- A/D converter 8-bit, 8-channel, successive approximation system (Conversion time 13µs/12.288MHz) Incorporated 3-stage FIFO for A/D conversion data
- Serial interface Incorporated buffer RAM for data (1 to 128 bytes auto transfer) 2-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
- High precision timing pattern generator PPG (11 pins) 32-stage programmable
- PWM output 12-bit, 2-channel (Repeated frequency 48kHz) 8-bit, 3-channel (Repeated frequency 48kHz)
- Servo input control Capstan FG, Drum FG/PG, Reel FG input
- FRC capture unit Incorporated 28-bit and 8-stage FIFO
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP/LQFP
• Piggyback/Evaluation CXP87500 100-pin ceramic QFP/LQFP
- 16-bit operation multiplycation and division/boolean bit operation instructions
• Minimum instruction cycle During operation 326ns/12.288MHz
• Incorporated ROM capacity 32K bytes (CXP87532) 40K bytes (CXP87540)
• Incorporated RAM capacity 1344 bytes
• Peripheral functions
- Arithmetic coprocessor Multiplying with code, sum of products with code, high speed execution of many bits shift rotation operation
- A/D converter 8-bit, 8-channel, successive approximation system (Conversion time 13µs/12.288MHz) Incorporated 3-stage FIFO for A/D conversion data
- Serial interface Incorporated buffer RAM for data (1 to 128 bytes auto transfer) 2-channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer
- High precision timing pattern generator PPG (11 pins) 32-stage programmable
- PWM output 12-bit, 2-channel (Repeated frequency 48kHz) 8-bit, 3-channel (Repeated frequency 48kHz)
- Servo input control Capstan FG, Drum FG/PG, Reel FG input
- FRC capture unit Incorporated 28-bit and 8-stage FIFO
• Interruption 12 factors, 12 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP/LQFP
• Piggyback/Evaluation CXP87500 100-pin ceramic QFP/LQFP

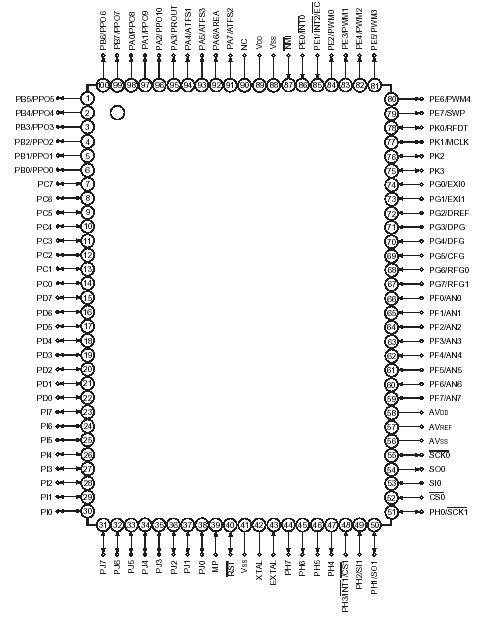

CXP87540 Connection Diagram
CXP87540
PDF/DataSheet Download
- Datasheet: CXP87540
- File Size: 348505 KB
- Manufacturer: SONY [Sony Corporation]
- Click here to Download
