CXP87800

Features: • A wide instruction set (213 instructions) which cover various types of data.- 16-bit operation/multiplication and division/ boolean bit operation instructions• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V)• Applicable EPROM LCC type 27C512 (Maximum ...

product image

CXP87800 Picture
See larger image
SeekIC No. : 004319024 Detail

CXP87800: Features: • A wide instruction set (213 instructions) which cover various types of data.- 16-bit operation/multiplication and division/ boolean bit operation instructions• Minimum instru...

CXP87800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXP87800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• A wide instruction set (213 instructions) which cover various types of data.
- 16-bit operation/multiplication and division/ boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5 to 5.5V)
• Applicable EPROM LCC type 27C512 (Maximum 60K bytes are available.)
• Incorporated RAM capacity 2048 bytes
• Peripheral functions
- A/D converter 8-bit, 12-channel, successive approximation method (Conversion time of 20µs/16MHz)
- Serial interface Buffer RAM 1 channel (Auto transfer for 1 to 32 bytes) 8-bit and 8-stage FIFO 1 channel (Auto transfer for 1 to 8 bytes) Incorporated two-wire 8-bit and 8-stage FIFO 1 channel (Auto transfer for 1 to 8 bytes)
- Timer 8-bit timer, 8-bit timer/counter 19-bit time base timer, 32kHz timer/counter
- High precision timing pattern generator PPG 19-pin, 32-stage programmable RTG 5 pins, 2 channels
- PWM/DA gate output PWM output 12 bits, 2 channels (Repetitive frequency of 62.5kHz/16MHz) DA gate pulse output 13 bits, 4channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control receiving circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
- General purpose prescaler 7 bits (SYNC1 input frequency division, FRC capture possible.)
- HSYNC counter 12-bit event counter (SYNC1 input count)
• Interruption 23 factors, 15 vectors, multi-interruption possible
• Standby mode SLEEP/STOP
• Package 100-pin ceramic PQFP


Pinout

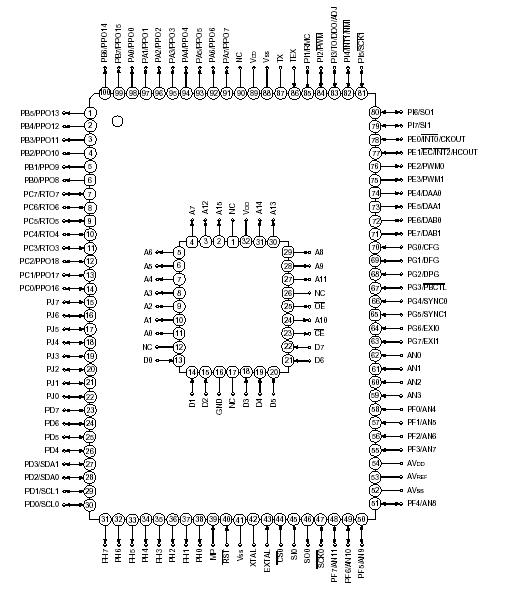

Connection Diagram


Description

The CXP87800 is a CMOS 8-bit single chip microcomputer of piggyback/evaluator combined type, which is developed for evaluating the function of the CXP87852/87860.
