Part Number: CXP87948
Description: The CXP87940/87948 is a CMOS 8-bit single chip microcomputer which consists of A/D converter, serial interface, time...
- Table of contents:
CXP87948
-
Suppliers
DataSheet
General Description
CXP87948 General Description
The CXP87940/87948 is a CMOS 8-bit single chip microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, high precision timing pattern generation circuit, PWM output, VISS/VASS circuit, 32kHz timer/counter, remote control reception circuit, VSYNC separator and the measurement circuit which measures signals of capstan FG and drum FG/PG and other servo systems, as well as basic configurations like 8-bit CPU, ROM, RAM and I/O port.
Also the CXP87940/87948 provides sleep/stop functions which enable to lower power consumption.
CXP87948 Maximum Ratings
| Item | Symbol | Rating | Unit | Remarks |
| Supply voltage | VDD | 0.3 to +7.0 | V | |
| AVDD | AVss to +7.0*1 | V | ||
| AVSS | 0.3 to +0.3 | V | ||
| AVREF | AVss to +7.0*1 | V | ||
| Input voltage | VIN | 0.3 to +7.0*2 | V | Port H pin |
| Output voltage | VOUT | 0.3 to +7.0*2 | V | |
| High level output current | IOH | 5 | mA | |
| High level total output current | IOH | 50 | mA | Total of output pins |
| Low level output current | IOL | 15 | mA | Other than large current output ports (value per pin) |
| IOLC | 20 | mA | Large current output pin*3: per pin | |
| Low level total output current | IOL | 130 | mA | Total of output pins |
| Operating temperature | Topr | 20 to +75 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C | |
| Allowable power dissipation | PD | 600 | mW |
CXP87948 Features
• A wide instruction set (213 instructions) which covers various types of data
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5V to 5.5V) 122µs at 32kHz operation (2.7V to 5.5V)
• Incorporated ROM capacity 40K bytes (CXP87940), 48K bytes (CXP87948)
• Incorporated RAM capacity 1376 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation method (Conversion time of 20.0µs at 16MHz)
- Serial Interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel Incorporated two-wire 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High-precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency of 62kHz at 16MHz) DA gate pulse output: 13 bits, 4 channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
• Interruption 22 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
• Piggyback/evaluator CXP87800 100-pin ceramic PQFP
- 16-bit operation/multiplication and division/Boolean bit operation instructions
• Minimum instruction cycle 250ns at 16MHz operation (4.5V to 5.5V) 122µs at 32kHz operation (2.7V to 5.5V)
• Incorporated ROM capacity 40K bytes (CXP87940), 48K bytes (CXP87948)
• Incorporated RAM capacity 1376 bytes
• Peripheral functions
- A/D converter 8 bits, 12 channels, successive approximation method (Conversion time of 20.0µs at 16MHz)
- Serial Interface Incorporated buffer RAM (Auto transfer for 1 to 32 bytes), 1 channel Incorporated 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel Incorporated two-wire 8-bit and 8-stage FIFO (Auto transfer for 1 to 8 bytes), 1 channel
- Timer 8-bit timer, 8-bit timer/counter, 19-bit time base timer,32kHz timer/counter
- High-precision timing pattern generator PPG: maximum of 19 pins, 32 stages programmable RTG: 5 pins, 2 channels
- PWM/DA gate output PWM: 12 bits, 2 channels (Repetitive frequency of 62kHz at 16MHz) DA gate pulse output: 13 bits, 4 channels
- Servo input control Capstan FG, drum FG/PG, CTL input
- VSYNC separator
- FRC capture unit Incorporated 26-bit and 8-stage FIFO
- PWM output 14 bits
- VISS/VASS circuit Pulse duty auto detection circuit
- Remote control reception circuit 8-bit pulse measurement counter with on-chip 6-stage FIFO
• Interruption 22 factors, 15 vectors, multi-interruption possible
• Standby mode Sleep/stop
• Package 100-pin plastic QFP
• Piggyback/evaluator CXP87800 100-pin ceramic PQFP

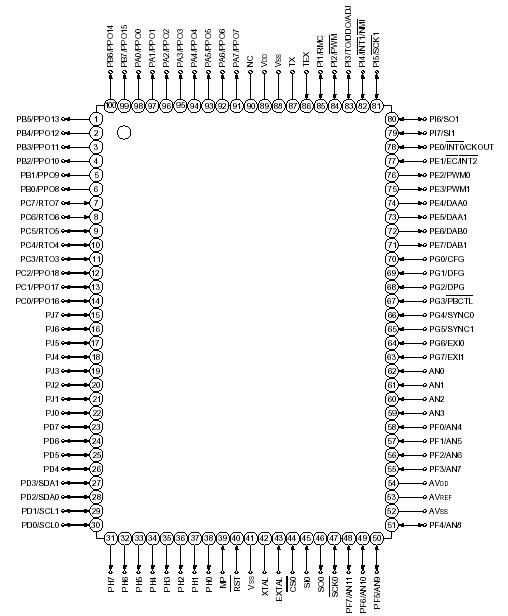

CXP87948 Connection Diagram
