CXR702F080

Features:

• CPU SR11 series 32-bit RISC CPU core
• Minimum instruction cycle 54.3ns (fSRC: 18.432MHz) 30.5µs (fTEX: 32.768kHz)
• Incorporated FLASH EEPROM 256K bytes
• Incorporated RAM 16K bytes
• Peripheral functions
- Bus interface unit
- DMA controller 4 channels
- A/D converter 8-bit 4-analog input, successive approximation system
- Serial interface Clock synchronization, 2 channels Clock synchronization, 1 channel (Incorporated 64-byte buffer RAM) Asynchronization, 2 channels
- Timers 8-bit timer, 8 channels 16-bit capture timer, 3 channels 8-bit time-base timer Clock prescaler 16-bit watchdog timer
- Memory stick interface
- Beep output circuit
- External interruption 11 channels (polarity selection and both edge detection possible)
• Standby mode Idle/sleep/stop
• Package 176-pin plastic LFLGA

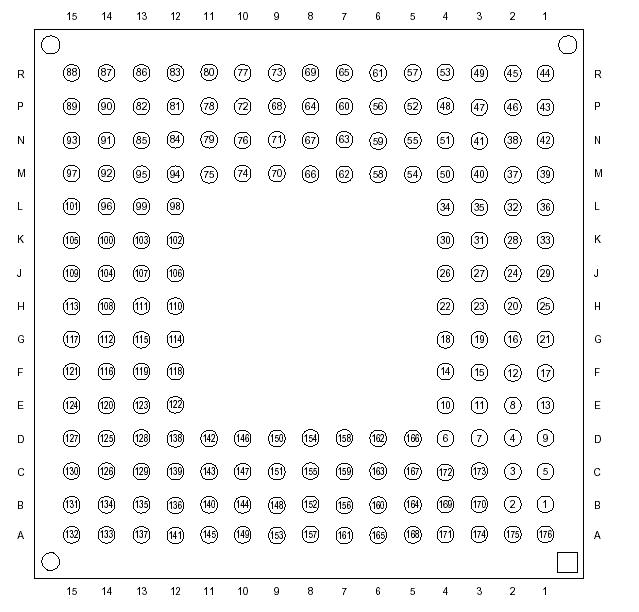

Pinout




Specifications

Item	Symbol	Rating	Unit	Remarks
Supply voltage	VDD	0.3 to +4.6	V
	AVDD	AVSS to +4.6*1	V
	AVSS	0.3 to +0.3	V
	AVREF	AVSS to +4.6	V
Input voltage	VIN	0.3 to +4.6*2	V
Output voltage	VOUT	0.3 to +4.6*2	V
High level output current	IOH	5	mA	Output (value per pin)
High level total output current	IOH	40	mA	Total for all output pins
Low level output current	IOL	10	mA	Output (value per pin)
Low level total output current	IOL	80	mA	Total for all output pins
Operating temperature	Topr	40 to +85	°C
Storage temperature	Tstg	55 to +150	°C
Allowable power dissipation	PD	380	mW

Description

The CXR702F080 is a CMOS 32-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer, bus interface unit, DMA controller, memory stick interface, and as well as basic configurations like a 32-bit RISC CPU, ROM, RAM,and I/O port.
This also provides the idle/sleep/stop functions that enable lower power consumption.
