CY22393
-
Suppliers
DataSheet
General Description
CY22393 Maximum Ratings
Supply Voltage ............................................... 0.5V to +7.0V
DC Input Voltage............................0.5V to + (AVDD + 0.5V)
Storage Temperature ..................................65°C to +125°C
Junction Temperature.................................................. 125°C
Data Retention @ Tj=125*C.................................> 10 years
Maximum Programming Cycles........................................100
Package Power Dissipation...................................... 350 mW
Static Discharge Voltage (per MIL-STD-883, Method 3015) ........................... > 2000V
Latch up (per JEDEC 17) .................................... > ±200 mA
DC Input Voltage............................0.5V to + (AVDD + 0.5V)
Storage Temperature ..................................65°C to +125°C
Junction Temperature.................................................. 125°C
Data Retention @ Tj=125*C.................................> 10 years
Maximum Programming Cycles........................................100
Package Power Dissipation...................................... 350 mW
Static Discharge Voltage (per MIL-STD-883, Method 3015) ........................... > 2000V
Latch up (per JEDEC 17) .................................... > ±200 mA
CY22393 Features
• Three integrated phase-locked loops (PLLs)
• Ultra-wide divide counters (8-bit Q, 11-bit P, and 7-bit post divide)
• Improved linear crystal load capacitors
• Flash programmability with external programmer
• Field-programmable
• Low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Configurable crystal drive strength
• Frequency select via three external LVTTL inputs
• 3.3V operation
• 16-pin TSSOP package
• CyClocksRT™ support
• Ultra-wide divide counters (8-bit Q, 11-bit P, and 7-bit post divide)
• Improved linear crystal load capacitors
• Flash programmability with external programmer
• Field-programmable
• Low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Configurable crystal drive strength
• Frequency select via three external LVTTL inputs
• 3.3V operation
• 16-pin TSSOP package
• CyClocksRT™ support

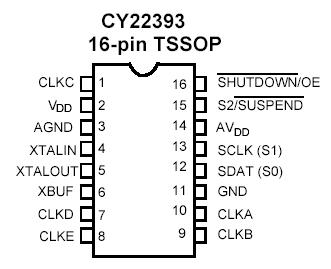

CY22393 Connection Diagram
CY22393
