CY2292
-
Suppliers
DataSheet
General Description
CY2292 Maximum Ratings
Supply Voltage ............................................... 0.5V to +7.0V
DC Input Voltage............................................ 0.5V to +7.0V
Storage Temperature ................................. 65°C to +150°C
Max. Soldering Temperature (10 sec) ......................... 260°C
Junction Temperature.................................................. 150°C
Package Power Dissipation...................................... 750 mW
Static Discharge Voltage............................................. 2000V
DC Input Voltage............................................ 0.5V to +7.0V
Storage Temperature ................................. 65°C to +150°C
Max. Soldering Temperature (10 sec) ......................... 260°C
Junction Temperature.................................................. 150°C
Package Power Dissipation...................................... 750 mW
Static Discharge Voltage............................................. 2000V
CY2292 Features
• Three integrated phase-locked loops
• EPROM programmability
• Factory-programmable (CY2292) or field-programmable (CY2292F) device options
• Low-skew, low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Frequency select option
• Smooth slewing on CPUCLK
• Configurable 3.3V or 5V operation
• 16-pin SOIC Package (TSSOP: F only)
• EPROM programmability
• Factory-programmable (CY2292) or field-programmable (CY2292F) device options
• Low-skew, low-jitter, high-accuracy outputs
• Power-management options (Shutdown, OE, Suspend)
• Frequency select option
• Smooth slewing on CPUCLK
• Configurable 3.3V or 5V operation
• 16-pin SOIC Package (TSSOP: F only)

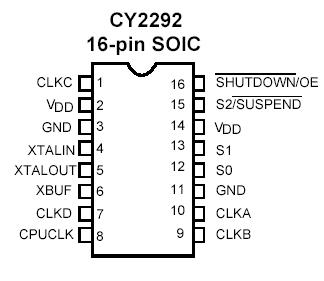

CY2292 Connection Diagram
CY2292
PDF/DataSheet Download
- Datasheet: CY2292
- File Size: 194530 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
