Purchase CY2302, In-stock CY2302 From SeekIC.
MFG:CY Package Cooled:SOP-8 D/C:N/A
- Table of contents:
CY2302
-
Suppliers
DataSheet
General Description
CY2302 Maximum Ratings
| Parameter | Description | Rating | Unit |
| VDD, VIN | Voltage on Any Pin with Respect to GND | 0.5 to +7.0 | V |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TA | Operating Temperature | 0 to +70 | °C |
| TB | Ambient Temperature under Bias | 55 to +125 | °C |
| PD | Power Dissipation | 0.5 | W |
CY2302 Features
• Two outputs
• Configuration options allow various multiplications of the reference frequency-refer to Table 1 to determine the specific option which meets your multiplication needs
• Available in 8-pin SOIC package
• Configuration options allow various multiplications of the reference frequency-refer to Table 1 to determine the specific option which meets your multiplication needs
• Available in 8-pin SOIC package

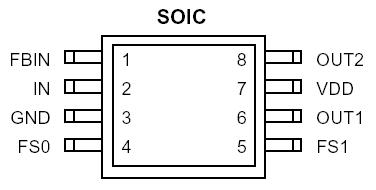

CY2302 Connection Diagram
CY2302
