CY25811
-
Suppliers
DataSheet
General Description
CY25811 Maximum Ratings
| Parameter | Description | Condition | Min. | Max. | Unit |
| VDD | Supply Voltage | -0.5 | 4.6 | V | |
| VIN | Input Voltage | Relative to VSS | -0.5 | VDD + 0.5 | VDC |
| TS | Temperature, Storage | Non Functional | -65 | 150 | °C |
| TA1 | Temperature, Operating Ambient | Functional, C-Grade | 0 | 70 | °C |
| TA2 | Temperature, Operating Ambient | Functional, I-Grade | -40 | 85 | °C |
| TJ | Temperature, Junction | Functional | - | 150 | °C |
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | - | V |
| UL-94 | Flammability Rating | @1/8 in. | V0 | ||
| MSL | Moisture Sensitivity Level | 1 | |||
CY25811 Features
• 4- to 32-MHz input frequency range
• 4- to 128-MHz output frequency range
• Accepts clock, crystal, and resonator inputs
• 1x, 2x, and 4x frequency multiplication:
- CY25811: 1x; CY25812: 2x; CY25814: 4x
• Center and down spread modulation
• Low power dissipation:
- 3.3V = 52 mW-typ @ 6MHz
- 3.3V = 60 mW-typ @ 12MHz
- 3.3V = 72 mW-typ @ 24MHz
• Low cycle-to cycle jitter:
- 8 MHz = 450 ps-max
- 16 MHz = 225 ps-max
- 32 MHz = 150 ps-max
• Available in 8-pin SOIC and TSSOP packages
• Commercial and industrial temperature ranges
• 4- to 128-MHz output frequency range
• Accepts clock, crystal, and resonator inputs
• 1x, 2x, and 4x frequency multiplication:
- CY25811: 1x; CY25812: 2x; CY25814: 4x
• Center and down spread modulation
• Low power dissipation:
- 3.3V = 52 mW-typ @ 6MHz
- 3.3V = 60 mW-typ @ 12MHz
- 3.3V = 72 mW-typ @ 24MHz
• Low cycle-to cycle jitter:
- 8 MHz = 450 ps-max
- 16 MHz = 225 ps-max
- 32 MHz = 150 ps-max
• Available in 8-pin SOIC and TSSOP packages
• Commercial and industrial temperature ranges
CY25811 Typical Application
• Printers and MFPs
• LCD panels
• Digital copiers
• PDAs
• CD-ROM, VCD, and DVD
• Networking, LAN/WAN
• Scanners
• Modems
• Embedded digital systems
• LCD panels
• Digital copiers
• PDAs
• CD-ROM, VCD, and DVD
• Networking, LAN/WAN
• Scanners
• Modems
• Embedded digital systems

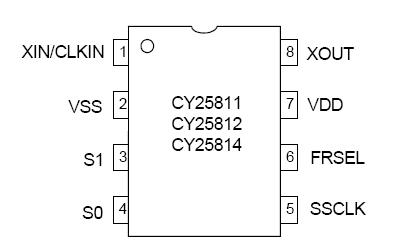

CY25811 Connection Diagram
CY25811
PDF/DataSheet Download
- Datasheet: CY25811
- File Size: 324218 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
