Purchase CY28322-2, In-stock CY28322-2 From SeekIC.
- Table of contents:
CY28322-2
-
Suppliers
DataSheet
General Description
CY28322-2 Maximum Ratings
Supply Voltage....................................................................0.5 to +7.0V
Input Voltage................................................................ 0.5V to VDD+0.5
Storage Temperature (Non-condensing) .......................65°C to +150°C
Max. Soldering Temperature (10 sec) .......................................... +260°C
Junction Temperature................................................................... +150°C
Package Power Dissipation...................................................................1
Static Discharge Voltage (per MIL-STD-883, Method 3015) .........> 2000V
CY28322-2 Features
• Compliant with Intel CK-Titan and CK-408 clock synthesizer/driver specifications
• Multiple output clocks at different frequencies
-Two pairs of differential CPU outputs, up to 200 MHz
-Nine synchronous PCI clocks, three free-running
-Six 3V66 clocks
-Two 48-MHz clocks
-One reference clock at 14.318 MHz
-One VCH clock
• Spread Spectrum clocking (down spread)
• Power-down features (PCI_STOP#, CPU_STOP# PWR_DWN#)
• Two select inputs (Mode select & IC Frequency Select)
• 48-pin TSSOP package

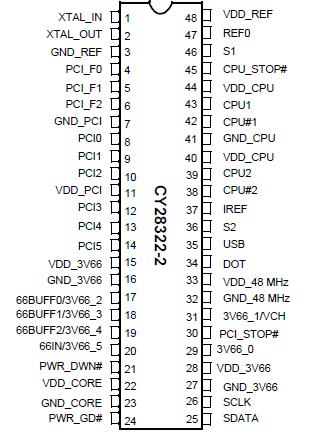

CY28322-2 Connection Diagram
CY28322-2
PDF/DataSheet Download
- Datasheet: CY28322-2
- File Size: 240895 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
