Purchase CY28324, In-stock CY28324 From SeekIC.
- Table of contents:
CY28324
-
Suppliers
DataSheet
General Description
CY28324 Maximum Ratings
Supply Voltage ..................................................................................... 0.5 to +7.0V
Input Voltage ...............................................................................0.5V to VDD + 0.5
Storage Temperature (Non-Condensing)........................................ 65°C to +150°C
Max. Soldering Temperature (10 sec) ............................................................ +260°C
Junction Temperature .................................................................................... +150°C
Package Power Dissipation......................................................................................1
Static Discharge Voltage (per MIL-STD-883, Method 3015) .............................>2000V
CY28324 Features
• Compatible to Intel® CK-00, CK-Titan & CK-408 Clock Synthesizer/Driver Specifications
• System frequency synthesizer for Intel 850, Brookdale (845) and Brookdale - G Pentium® 4 Chipsets
• Programmable clock output frequency with less than 1 MHz increment
• Integrated fail-safe Watchdog Timer for system recovery
• Automatically switch to HW selected or SW programmed clock frequency when Watchdog Timer time-out
• Capable of generating system RESET after a Watchdog Timer time-out occurs or a change in output frequency via SMBus interface
• Support SMBus byte read/write and block read/write operations to simplify system BIOS development
• Vendor ID and Revision ID support
• Programmable drive strength support
• Programmable output skew support
• Power management control inputs
• Available in 48-pin SSOP

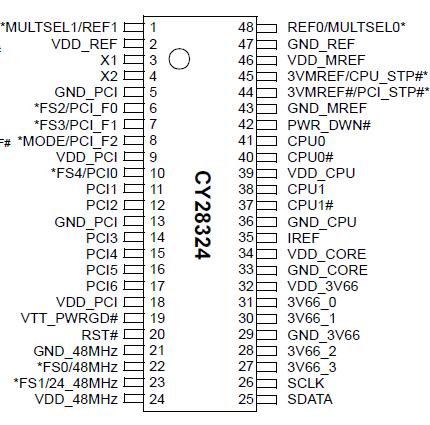

CY28324 Connection Diagram
CY28324
PDF/DataSheet Download
- Datasheet: CY28324
- File Size: 188713 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
