CY28341-3
-
Suppliers
DataSheet
General Description
CY28341-3 Maximum Ratings
| Parameter | Description | Condition | Min. | Max. | Unit | |
| VDD | Core Supply Voltage | 0.5 | 4.6 | V | ||
| VDDA | Analog Supply Voltage | 0.5 | 4.6 | V | ||
| VIN | Input Voltage | Relative to VSS | 0.5 | VDD+0.5 | VDC | |
| TS | Temperature, Storage | Non-functional | 65 | +150 | °C | |
| TA | Temperature, Operating Ambient | Functional | 0 | 70 | °C | |
| TJ | Temperature, Junction | Functional | 150 | °C | ||
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | V | ||
| ØJC | Dissipation, Junction to Case | Mil-Spec 883E Method 1012.1 | TSSOP | 20 | °C/W | |
| SSOP | ||||||
| ØJA | Dissipation, Junction to Ambient | JEDEC (JESD 51) | TSSOP | 60 | °C/W | |
| SSOP | ||||||
| UL-94 | Flammability Rating | At 1/8 in. | V0 | |||
| MSL | Moisture Sensitivity Level | 1 | ||||
CY28341-3 Features
• Supports VIA P4M/KM/KT/266/333/400A chipsets
• Supports Intel®Pentium® 4, Athlon™ processors
• Supports two DDR DIMMS
• Provides:
- Two different programmable CPU clock pairs
- Six differential DDR pairs
- Three low-skew/-jitter AGP clocks
- Seven low-skew/-jitter PCI clocks
- One 48M output for USB
- One programmable 24M or 48M for SIO
• Dial-A-Frequency®and Dial-A-dB™ features
• Spread Spectrum for best EMI reduction
• Watchdog feature for system recovery
• SMBus-compatible for programmability
• 56-pin SSOP and TSSOP packages
• Supports Intel®Pentium® 4, Athlon™ processors
• Supports two DDR DIMMS
• Provides:
- Two different programmable CPU clock pairs
- Six differential DDR pairs
- Three low-skew/-jitter AGP clocks
- Seven low-skew/-jitter PCI clocks
- One 48M output for USB
- One programmable 24M or 48M for SIO
• Dial-A-Frequency®and Dial-A-dB™ features
• Spread Spectrum for best EMI reduction
• Watchdog feature for system recovery
• SMBus-compatible for programmability
• 56-pin SSOP and TSSOP packages

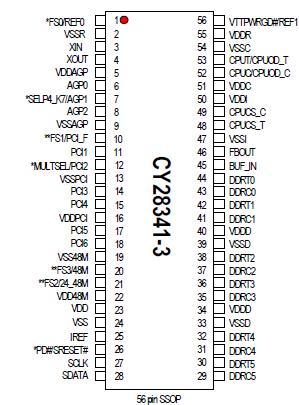

CY28341-3 Connection Diagram
CY28341-3
PDF/DataSheet Download
- Datasheet: CY28341-3
- File Size: 356352 KB
- Manufacturer: CYPRESS
- Click here to Download
