CY28346-2
-
Suppliers
DataSheet
General Description
CY28346-2 Maximum Ratings
| Parameter | Description | Condition |
Min. |
Max. |
Unit |
| VDD | Core Supply Voltage |
0.5 |
4.6 |
V | |
| VDD_A | Analog Supply Voltage |
0.5 |
4.6 |
V | |
| VIN | Input Voltage | Relative to VSS |
0.5 |
VDD+0.5 |
VDC |
| TS | Temperature, Storage | Non-functional |
65 |
150 |
°C |
| TA | Temperature, Operating Ambient | Functional |
0 |
85 |
°C |
| TJ | Temperature, Junction | Functional |
150 |
°C | |
| ØJC | Dissipation, Junction to Case | Mil-Spec 883E Method 1012.1 |
45 |
°C/W | |
| ØJA | Dissipation, Junction to Ambient | JEDEC (JESD 51) |
15 |
°C/W | |
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | ||
| UL-94 | Flammability Rating | V0 @1/8 in. |
V0 |
||
| MSL | Moisture Sensitivity Level |
1 |
|||
CY28346-2 Features
• Compliant with Intel® CK 408 Mobile Clock Synthesizer specifications
• 3.3V power supply
• 3 differential CPU clocks
• 10 copies of PCI clocks
• 5/6 copies of 3V66 clocks
• SMBus support with Read Back capabilities
• Spread Spectrum electromagnetic interference (EMI) reduction
• Dial-a-Frequency features
• Dial-a-dB™ features
• Extended operating temperature range, 0°C to 85°C
• 56-pin TSSOP packages
• 3.3V power supply
• 3 differential CPU clocks
• 10 copies of PCI clocks
• 5/6 copies of 3V66 clocks
• SMBus support with Read Back capabilities
• Spread Spectrum electromagnetic interference (EMI) reduction
• Dial-a-Frequency features
• Dial-a-dB™ features
• Extended operating temperature range, 0°C to 85°C
• 56-pin TSSOP packages

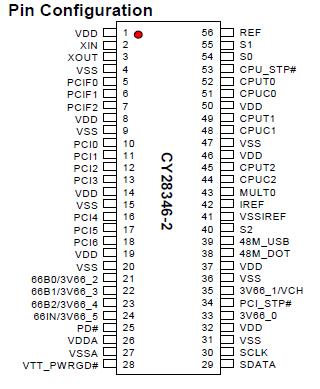

CY28346-2 Connection Diagram
CY28346-2
