CY28405-3
-
Suppliers
DataSheet
General Description
CY28405-3 Maximum Ratings
| Parameter | Description | Condition |
Min. |
Max. |
Unit |
| VDD | Core Supply Voltage |
0.5 |
4.6 |
V | |
| VDD_A | Analog Supply Voltage |
0.5 |
4.6 |
V | |
| VIN | Input Voltage | Relative to VSS |
0.5 |
VDD+0.5 |
VDC |
| TS | Temperature, Storage | Non-functional |
65 |
+150 |
°C |
| TA | Temperature, Operating Ambient | Functional |
0 |
70 |
°C |
| TJ | Temperature, Junction | Functional |
150 |
°C | |
| ØJC | Dissipation, Junction to Case | Mil-Spec 883E Method 1012.1 |
20 |
°C/W | |
| ØJA | Dissipation, Junction to Ambient | JEDEC (JESD 51) |
60 |
°C/W | |
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | ||
| UL-94 | Flammability Rating | At 1/8 in. |
V0 |
||
| MSL | Moisture Sensitivity Level |
1 |
|||
CY28405-3 Features
• Supports Intel® Pentium® 4-type CPUs
• Selectable CPU frequencies
• 3.3V power supply
• Nine copies of PCI clocks
• Four copies of 3V66 with one optional VCH
• Two copies 48-MHz clock
• Two copies of REF
• Three differential CPU clock pairs
• One differential SRC clock
• Support SMBus/I2C Byte, Word and Block Read/ Write
• Ideal Lexmark Spread Spectrum profile for maximum electromagnetic interference (EMI) reduction
• 48-pin SSOP package
• Selectable CPU frequencies
• 3.3V power supply
• Nine copies of PCI clocks
• Four copies of 3V66 with one optional VCH
• Two copies 48-MHz clock
• Two copies of REF
• Three differential CPU clock pairs
• One differential SRC clock
• Support SMBus/I2C Byte, Word and Block Read/ Write
• Ideal Lexmark Spread Spectrum profile for maximum electromagnetic interference (EMI) reduction
• 48-pin SSOP package

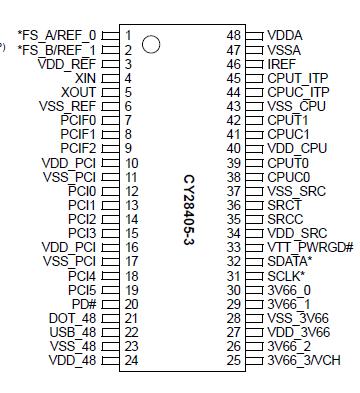

CY28405-3 Connection Diagram
CY28405-3
