Part Number: CY28409











Urgent Purchase

CY28409 Features

• Supports Intel® Pentium®  4-type CPUs
• Selectable CPU frequencies
• 3.3V power supply
• Ten copies of PCI clocks
• Five copies of 3V66 with one optional VCH
• Two copies 48-MHz USB clocks
• Three differential CPU clock pairs
• One differential SRC clock
• I2C support with readback capabilities
• Ideal Lexmark Spread Spectrum profile for maximum
EMI reduction
• 56-pin SSOP and TSSOP packages

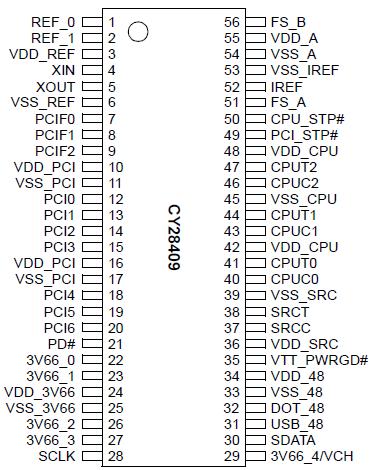

CY28409 Connection Diagram

CY28409 Connection Diagram

CY28409 datasheet
