CY28410-2
-
Suppliers
DataSheet
General Description
CY28410-2 Maximum Ratings
| Parameter | Description | Condition |
Min. |
Max. |
Unit |
| VDD | Core Supply Voltage |
0.5 |
4.6 |
V | |
| VDD_A | Analog Supply Voltage |
0.5 |
4.6 |
V | |
| VIN | Input Voltage | Relative to VSS |
0.5 |
VDD+0.5 |
VDC |
| TS | Temperature, Storage | Non-functional |
65 |
+150 |
°C |
| TA | Temperature, Operating Ambient | Functional |
0 |
70 |
°C |
| TJ | Temperature, Junction | Functional |
150 |
°C | |
| ØJC | Dissipation, Junction to Case | Mil-Spec 883E Method 1012.1 |
20 |
°C/W | |
| ØJA | Dissipation, Junction to Ambient | JEDEC (JESD 51) |
60 |
°C/W | |
| ESDHBM | ESD Protection (Human Body Model) | MIL-STD-883, Method 3015 | 2000 | ||
| UL-94 | Flammability Rating | At 1/8 in. |
V0 |
||
| MSL | Moisture Sensitivity Level |
1 |
|||
CY28410-2 Features
• Compliant with Intel®CK410
• Supports Intel P4 and Tejas CPU
• Selectable CPU frequencies
• Differential CPU clock pairs
• 100-MHz differential SRC clocks
• 96-MHz differential dot clock
• 48-MHz USB clocks
• 33-MHz PCI clock
• Low-voltage frequency select input
• I2C support with readback capabilities
• Ideal Lexmark Spread Spectrum profile for maximum
electromagnetic interference (EMI) reduction
• 3.3V power supply
• 56-pin SSOP and TSSOP packages
• Supports Intel P4 and Tejas CPU
• Selectable CPU frequencies
• Differential CPU clock pairs
• 100-MHz differential SRC clocks
• 96-MHz differential dot clock
• 48-MHz USB clocks
• 33-MHz PCI clock
• Low-voltage frequency select input
• I2C support with readback capabilities
• Ideal Lexmark Spread Spectrum profile for maximum
electromagnetic interference (EMI) reduction
• 3.3V power supply
• 56-pin SSOP and TSSOP packages

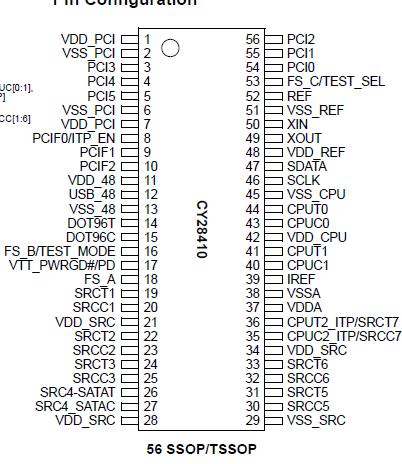

CY28410-2 Connection Diagram
CY28410-2
PDF/DataSheet Download
- Datasheet: CY28410-2
- File Size: 602198 KB
- Manufacturer: CYPRESS
- Click here to Download
