Part Number: CY29FCT52T
Description: The CY29FCT52T has two 8-bit back-to-back registers that store data flowing in both directions between...
- Table of contents:
CY29FCT52T
-
Suppliers
DataSheet
General Description
CY29FCT52T General Description
The CY29FCT52T has two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Separate clock, clock enable, and 3-state output-enable signals are provided for each register. Both A outputs and B outputs are specified to sink 64 mA.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
CY29FCT52T Maximum Ratings
Supply voltage range to ground potential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DC input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DC output voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DC output current (maximum sink current/pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . 120 mA
Package thermal impedance, JA (see Note 1): Q package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61°C/W
SO package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . 46°C/W
Ambient temperature range with power applied, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 135°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The package thermal impedance is calculated in accordance with JESD 51-7.
DC input voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DC output voltage range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
DC output current (maximum sink current/pin) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . 120 mA
Package thermal impedance, JA (see Note 1): Q package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61°C/W
SO package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . 46°C/W
Ambient temperature range with power applied, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 135°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTE 1: The package thermal impedance is calculated in accordance with JESD 51-7.
CY29FCT52T Features
` Function, Pinout, and Drive Compatible With FCT, F Logic, and AM2952
` Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
` Edge-Rate Control Circuitry for
Significantly Improved Noise Characteristics
` ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
` Ioff Supports Partial-Power-Down Mode Operation
` Matched Rise and Fall Times
` Fully Compatible With TTL Input and Output Logic Levels
` 64-mA Output Sink Current 32-mA Output Source Current
` Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
` Edge-Rate Control Circuitry for
Significantly Improved Noise Characteristics
` ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
` Ioff Supports Partial-Power-Down Mode Operation
` Matched Rise and Fall Times
` Fully Compatible With TTL Input and Output Logic Levels
` 64-mA Output Sink Current 32-mA Output Source Current

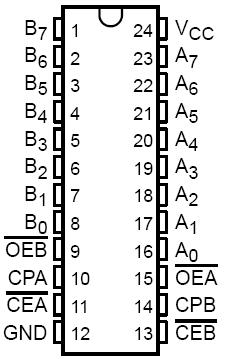

CY29FCT52T Connection Diagram
CY29FCT52T
PDF/DataSheet Download
- Datasheet: CY29FCT52T
- File Size: 270526 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
