Features: • Twenty ECL/PECL differential outputs• One ECL/PECL compatible differential or single-endedclock inputs• One HSTL compatible differential or single-ended clockinputs• Hot-swappable/-insertable• 50 ps output-to-output skew• 150 ps device-to-device skew...
CY2DP3120: Features: • Twenty ECL/PECL differential outputs• One ECL/PECL compatible differential or single-endedclock inputs• One HSTL compatible differential or single-ended clockinputsR...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
US $3.35 - 4.72 / Piece
Buffers & Line Drivers 1:4 Fanout Buffer 2.5-3.3V 1500MHz
US $3.26 - 3.39 / Piece
Buffers & Line Drivers 1:4 Fanout Buffer 2.5-3.3V 1500MHz
US $3.94 - 5.55 / Piece
Buffers & Line Drivers 1:4 Fanout Buffer 2.5-3.3V 1500MHz
Parameter |
Description | Condition |
Min. |
Max. |
Unit |
VCC |
Positive Supply Voltage | Non-Functional |
0.3 |
4.6 |
V |
VEE |
Negative Supply Voltage | Non-Functional |
-4.6 |
0.3 |
V |
TS |
Temperature, Storage | Non-Functional |
65 |
+150 |
°C |
TJ |
Temperature, Junction | Non-Functional |
150 |
°C | |
ESDh |
ESD Protection | Human Body Model |
2000 |
V | |
MSL |
Moisture Sensitivity Level |
3 |
N.A. | ||
Gate Count |
Total Number of Used Gates | Assembled Die |
50 |
gates |

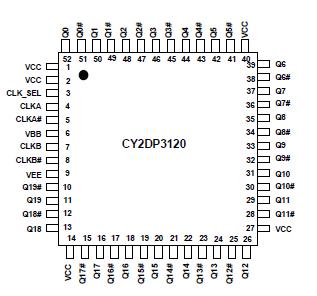

The CY2DP3120 is a low-skew, low propagation delay 1-to-20 differential fanout buffer targeted to meet the requirements of high-performance clock and data distribution applications. The device is implemented on SiGe technology and has a fully differential internal architecture that is optimized to achieve low signal skews at operating frequencies of up to 1.5 GHz. The device features two differential input paths that are multiplexed internally. This mux is controlled by the CLK_SEL pin.
The CY2DP3120 may function not only as a differential clock buffer but also as a signal-level translator and fanout on ECL/PECL signal to twenty ECL/PECL differential loads. An external bias pin, VBB, is provided for this purpose. In such an application, the VBB pin should be connected to either one of the CLKA# or CLKB# inputs and bypassed to ground via a 0.01-F capacitor. Traditionally, in ECL, it is used to provide the reference level to a receiving single-ended input that might have a different self-bias point.
Since the CY2DP3120 introduces negligible jitter to the timing budget, it is the ideal choice for distributing high frequency, high precision clocks across back-planes and boards in communication systems. Furthermore, advanced circuit design schemes, such as internal temperature compensation, ensure that the CY2DP3120 delivers consistent performance over various platforms.
