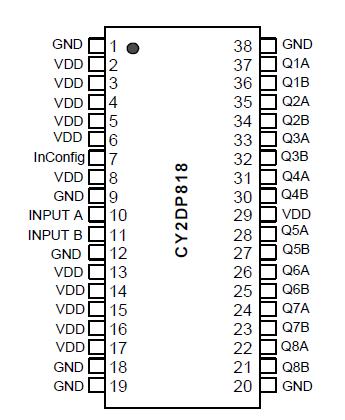

CY2DP818

Storage Temperature: .............................................................65°C to + 150°C
Ambient Temperature:.................................................................40°C to +85°C
Supply Voltage to Ground Potential (Inputs and V_CC only)............ 0.3V to 4.6V
Supply Voltage to Ground Potential (Outputs only) ............ 0.3V to VDD + 0.3V
DC Input Voltage ................................................................ 0.3V to VDD + 0.3V
DC Output Voltage............................................................... 0.3V to VDD + 0.9V
Power Dissipation...................................................................................... 0.75W

This Cypress series of network circuits are produced using advanced 0.35-micron CMOS technology, achieving the industry's fastest logic.

The Cypress CY2DP818 fanout buffer features a single LVDS or a single-ended LVTTL-compatible input and eight LVPECL output pairs.

Designed for data-communications clock-management applications, the large fanout from a single input reduces loading on the input clock.

The CY2DP818 is ideal for both level translations from single-ended to LVPECL and/or for the distribution of LVPECL-based clock signals.

The Cypress CY2DP818 has configurable input functions. The input is user configurable via the Inconfig pin for single ended or differential input.
