Product Details

Description



Features:

•  In-System Reprogrammable™ (ISR™) CMOS CPLDs
- JTAG interface for reconfigurability
- Design changes do not cause pinout changes
- Design changes do not cause timing changes
•  High density
- 32 to 512 macrocells
- 32 to 264 I/O pins
- Five dedicated inputs including four clock pins
•  Simple timing model
- No fanout delays
- No expander delays
- No dedicated vs. I/O pin delays
- No additional delay through PIM
- No penalty for using full 16 product terms
- No delay for steering or sharing product terms
•  3.3V and 5V versions
•  PCI-compatible[1]
•  Programmable bus-hold capabilities on all I/Os
•  Intelligent product term allocator provides:
- 0 to 16 product terms to any macrocell
- Product term steering on an individual basis
- Product term sharing among local macrocells
•  Flexible clocking
- Four synchronous clocks per device
- Product term clocking
- Clock polarity control per logic block
•  Consistent package/pinout offering across all densities
- Simplifies design migration
- Same pinout for 3.3V and 5.0V devices
•  Packages
- 4 to 400 leads in PLCC, CLCC, PQFP, TQFP, CQFP,
    BGA, and Fine-Pitch BGA packages
- Lead(Pb)-free packages available


Pinout

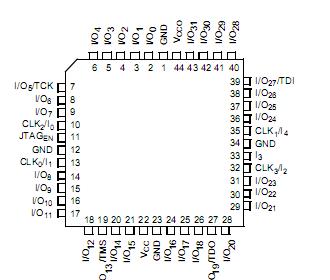

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guide-lines, not tested.)
Storage Temperature  .........................................................65°C to +150°C
Ambient Temperature with
Power Applied......................................................................55°C to +125°C
Supply Voltage to Ground Potential .......................................... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High-Z State............................................................................0.5V to +7.0V
DC Input Voltage .......................................................................0.5V to +7.0V
DC Program Voltage........................................................................... .5 to 5.5V
Current into Outputs .................................................................................6 mA
Static Discharge Voltage.......................................................................> 2001V
(per MIL-STD-883, Method 3015)
Latch-up Current.................................................................................> 200 mA
