Part Number: CY5474FCT841T
Description: The FCT841T bus interface latch is designed to eliminate the extra packages required to buffer existing latches and pro...
- Table of contents:
CY5474FCT841T
-
Suppliers
DataSheet
General Description
CY5474FCT841T General Description
The FCT841T bus interface latch is designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data paths or buses carrying parity. The FCT841T is a buffered 10-bit wide version of the FCT373 function.
The FCT841T high-performance interface is designed for high-capacitance load drive capability while providing low-capacitance bus loading at both inputs and outputs. Outputs are designed for low-capacitance bus loading in the high impedance state and are designed with a power-off disable feature to allow for live insertion of boards.
CY5474FCT841T Maximum Ratings
Storage Temperature ...............................65°C to +150°C
Ambient Temperature with
Power Applied ..........................................65°C to +135°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Input Voltage............................................ 0.5V to +7.0V
DC Output Voltage ......................................... 0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) .......... 120 mA
Power Dissipation .............................................................0.5W
Static Discharge Voltage................................................>2001V
Ambient Temperature with
Power Applied ..........................................65°C to +135°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Input Voltage............................................ 0.5V to +7.0V
DC Output Voltage ......................................... 0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) .......... 120 mA
Power Dissipation .............................................................0.5W
Static Discharge Voltage................................................>2001V
CY5474FCT841T Features
• Function, pinout, and drive compatible with FCT, F, and AM29841 logic
• FCT-C speed at 5.5 ns max. (Com'l)FCT-B speed at 6.5 ns max. (Com'l)
• Reduced VOH (typically = 3.3V) versions of equivalent FCT functions
• Edge-rate control circuitry for significantly improved noise characteristics
• Power-off disable feature
• Matched rise and fall times
• ESD > 2000V
• Fully compatible with TTL input and output logic levels
• Sink current 64 mA (Com'l),32 mA (Mil) Source current 32 mA (Com'l),12 mA (Mil)
• High-speed parallel latches
• Buffered common latch enable input
• FCT-C speed at 5.5 ns max. (Com'l)FCT-B speed at 6.5 ns max. (Com'l)
• Reduced VOH (typically = 3.3V) versions of equivalent FCT functions
• Edge-rate control circuitry for significantly improved noise characteristics
• Power-off disable feature
• Matched rise and fall times
• ESD > 2000V
• Fully compatible with TTL input and output logic levels
• Sink current 64 mA (Com'l),32 mA (Mil) Source current 32 mA (Com'l),12 mA (Mil)
• High-speed parallel latches
• Buffered common latch enable input

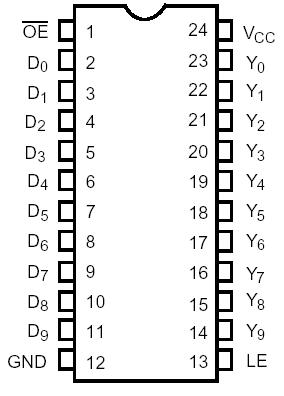

CY5474FCT841T Connection Diagram
CY5474FCT841T
