CY74FCT162244T General Description

These 16-bit buffers/line drivers are designed for use in memorydriver,clockdriver,orotherbusinterfaceapplications, where high-speed and low power are required. With flow-through pinout and small shrink packaging board layout is simplified. The three-state controls are designed to allow 4-bit, 8-bit or combined 16-bit operation. The outputs are designed with a power-off disable feature to allow for live insertion of boards.

The CY74FCT16244T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The CY74FCT162244T has 24-mA balanced output drivers with current limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce. The CY74FCT162244T is ideal for driving transmission lines. TheCY74FCT162H244Tisa24-mAbalancedoutputpartthat has "bus hold" on the data inputs. The device retains the in- put's last state whenever the input goes to high impedance. This eliminates the need for pull-up/down resistors and prevents floating inputs.

CY74FCT162244T Maximum Ratings

(Above which the useful life may be impaired. For user
guidelines, not tested.)
Storage Temperature................................... 55 C to +125 C
Ambient Temperature with
Power Applied...............................................55 C to +125 C
DC Input Voltage ........................................... 0.5V to +7.0V
DC Output Voltage.......................................... 0.5V to +7.0V
DC Output Current
(Maximum Sink Current/Pin) ..........................60 to +120 mA
Power Dissipation.............................................................1.0W
Static Discharge Voltage...............................................>2001V
(per MIL-STD-883, Method 3015)

CY74FCT162244T Features

* FCT-E speed at 3.2 ns
* Power-off disable outputs permits live insertion
* Edge-rate control circuitry for significantly improved noise characteristics
* Typical output skew < 250 ps
* ESD > 2000V
* TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
* Industrial temperature range of 40?C to +85?C
* V_CC = 5V 10%
   CY74FCT16244T Features:
* 64 mA sink current, 32 mA source current
* Typical V (ground bounce) OLP <1.0V at V_CC = 5V, T_A = 25?C
   CY74FCT162244T Features:
* Balanced output drivers: 24 mA
* Reduced system switching noise
* Typical V (ground bounce) OLP <0.6V at V_CC = 5V, T_A = 25?C
   CY74FCT162H244T Features:
* Bus hold on data inputs
* Eliminates the need for external pull-up or pull-down resistors

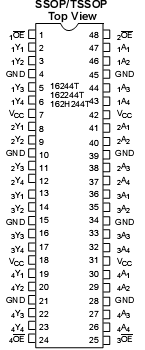

CY74FCT162244T Connection Diagram
