Part Number: CY74FCT162500T
Description: These 18-bit universal bus transceivers can be operated in transparent, latched, or clock modes by combining D-type lat...
- Table of contents:
CY74FCT162500T
-
Suppliers
DataSheet
General Description
CY74FCT162500T General Description
These 18-bit universal bus transceivers can be operated in transparent, latched, or clock modes by combining D-type latches and D-type flip-flops. Data flow in each direction is controlled by output-enable (OEAB and OEBA ), latch enable (LEAB and LEBA), and clock inputs ( CLKBA andCLKBA) inputs. For A-to-B data flow, the device operates in transparent mode when LEAB is HIGH. When LEAB is LOW, the A data is latched if CLKAB is held at a HIGH or LOWlogic level. If LEAB is LOW, the A bus data is stored in the latch/flip-flop on the HIGH-to-LOWtransition of CLKBA. OEAB performs the output enable function on the B port. Data flow from B-to-A is similar to that of A-to-B and is controlled by OEAB and OEBA , LEBA, and CLKBA. The output buffers are designed with power-off disable feature that allows live insertion of boards.
The CY74FCT16500T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The CY74FCT162500T has 24-mA balanced output drivers with current limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce.
The CY74FCT162500T is ideal for driving transmission lines.
CY74FCT162500T Maximum Ratings
Storage Temperature ...................Com'l -55°C to +125°C
Ambient Temperature with
Power Applied............................. Com'l -55°C to +125°C
DC Input Voltage ............................................-0.5V to +7.0V
DC Output Voltage .........................................-0.5V to +7.0V
DC Output Current
(Maximum Sink Current/Pin) .........................-60 to +120 mA
Power Dissipation .........................................................1.0W
Static Discharge Voltage...........................................>2001V
Ambient Temperature with
Power Applied............................. Com'l -55°C to +125°C
DC Input Voltage ............................................-0.5V to +7.0V
DC Output Voltage .........................................-0.5V to +7.0V
DC Output Current
(Maximum Sink Current/Pin) .........................-60 to +120 mA
Power Dissipation .........................................................1.0W
Static Discharge Voltage...........................................>2001V
CY74FCT162500T Features
• FCT-C speed at 4.6 ns
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• VCC = 5V ± 10% CY74FCT16500T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C CY74FCT162500T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• VCC = 5V ± 10% CY74FCT16500T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C CY74FCT162500T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C

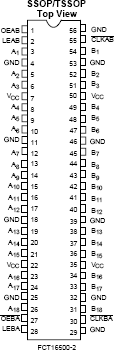

CY74FCT162500T Connection Diagram
CY74FCT162500T
PDF/DataSheet Download
- Datasheet: CY74FCT162500T
- File Size: 64958 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
