Part Number: CY74FCT162827T

Description: The CY74FCT16827T 20-bit buffer/line driver and the CY74FCT162827T 20-bit buffer/line driver provide high-performance b...

CY74FCT162827T General Description

The CY74FCT16827T 20-bit buffer/line driver and the CY74FCT162827T 20-bit buffer/line driver provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. These parts can be used as a single 20-bit buffer or two 10-bit buffers. Each 10-bit buffer has a pair of NANDed OE for increased flexibility. The outputs are designed with a power-off disable feature to allow for live insertion of boards.
The CY74FCT16827T is ideally suited for driving high-capacitance loads and low-impedance backplanes.
The CY74FCT162827T has 24-mA balanced output drivers with current-limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce. The CY74FCT162827T is ideal for driving transmission lines.

CY74FCT162827T Maximum Ratings

Storage Temperature ......................................................... -55°C to +125°C
Ambient Temperature with Power Applied........................... -55°C to +125°C
DC Input Voltage ........................................................................-0.5V to +7.0V
DC Output Voltage ......................................................................-0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) ........................-60 to +120 mA
Power Dissipation ......................................................................................1.0W
Static Discharge Voltage.........................................................................>2001V

CY74FCT162827T Features

• FCT-E speed at 3.2 ns
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• V_CC = 5V ± 10%
CY74FCT16827T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at V_CC = 5V, T_A = 25°C
CY74FCT162827T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at V_CC = 5V, T_A= 25°C

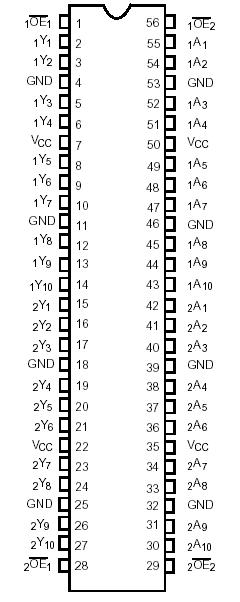

CY74FCT162827T Connection Diagram

CY74FCT162827T datasheet

CY74FCT162827T
PDF/DataSheet Download

Datasheet: CY74FCT162827T
File Size: 64231 KB
Manufacturer: TI [Texas Instruments]
Click here to Download
