Part Number: CY74FCT162841T

Description: The CY74FCT16841T and CY74FCT162841T are 20-bit D-type latches designed for use in bus applications requiring high spee...

CY74FCT162841T General Description

The CY74FCT16841T and CY74FCT162841T are 20-bit D-type latches designed for use in bus applications requiring high speed and low power. These devices can be used as two independent 10-bit latches, or as a single 10-bit latch, or as a single 20-bit latch by connecting the Output Enable (OE) and Latch (LE) inputs. Flow-through pinout and small shrink packaging aid in simplifying board layout. The output buffers are designed with a power-off disable feature to allow live insertion of boards.

The CY74FCT16841T is ideally suited for driving high-capacitance loads and low-impedance backplanes.

The CY74FCT162841T has 24-mA balanced output drivers with current limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce. The CY74FCT162841T is ideal for driving transmission lines.

CY74FCT162841T Maximum Ratings

Storage Temperature ..........................................................-55°C to +125°C
Ambient Temperature with Power Applied ...........................-55°C to +125°C
DC Input Voltage ........................................................................-0.5V to +7.0V
DC Output Voltage ......................................................................-0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) ........................-60 to +120 mA
Power Dissipation ......................................................................................1.0W
Static Discharge Voltage.........................................................................>2001V

CY74FCT162841T Features

• FCT-C speed at 5.5 ns (FCT16841T Com'l)
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of -40°C to +85°C
• V_CC = 5V ± 10%
CY74FCT16841T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at V_CC = 5V, T_A = 25°C
CY74FCT162841T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at V_CC = 5V, T_A= 25°C

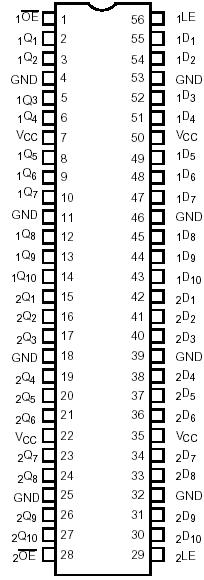

CY74FCT162841T Connection Diagram
