General Description
CY74FCT162952T General Description
These 16-bit registered transceivers are high-speed, low-power devices. 16-bit operation is achieved by connecting the control lines of the two 8-bit registered transceivers together. For data flow from bus A-to-B, CEAB must be LOW to allow data to be stored when CLKAB transitions from LOW-to-HIGH. The stored data will be present on the output when OEAB is LOW. Control of data from B-to-A is similar and is controlled by using the CEBA , CLKBA, and OEBAinputs.
The output buffers are designed with a power-off disable feature to allow for live insertion of boards.
The CY74FCT16952T is ideally suited for driving high-capacitance loads and low-impedance backplanes.
The CY74FCT162952T has 24-mA balanced output drivers with current-limiting resistors in the outputs. This reduces the need for external terminating resistors and provides for minimal undershoot and reduced ground bounce. The CY74FCT162952T is ideal for driving transmission lines.
The CY74FCT162H952T is a 24-mA balanced output part that has "bus hold" on the data inputs. The device retains the input's last state whenever the input goes to high impedance.
This eliminates the need for pull-up/down resistors and prevents floating inputs.
CY74FCT162952T Maximum Ratings
Storage Temperature ..........................................................55°C to +125°C
Ambient Temperature with Power Applied........................... 55°C to +125°C
DC Input Voltage ....................................................................... 0.5V to +7.0V
DC Output Voltage...................................................................... 0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) ........................60 to +120 mA
Power Dissipation ........................................................................................1.0W
Static Discharge Voltage...........................................................................>2001V
Ambient Temperature with Power Applied........................... 55°C to +125°C
DC Input Voltage ....................................................................... 0.5V to +7.0V
DC Output Voltage...................................................................... 0.5V to +7.0V
DC Output Current (Maximum Sink Current/Pin) ........................60 to +120 mA
Power Dissipation ........................................................................................1.0W
Static Discharge Voltage...........................................................................>2001V
CY74FCT162952T Features
• FCT-E speed at 3.7 ns
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of 40°C to +85°C
• VCC = 5V ± 10%
CY74FCT16952T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C
CY74FCT162952T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C
CY74FCT162H952T Features:
• Bus hold retains last active state
• Eliminates the need for external pull-up or pull-down resistors
• Power-off disable outputs permits live insertion
• Edge-rate control circuitry for significantly improved noise characteristics
• Typical output skew < 250 ps
• ESD > 2000V
• TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages
• Industrial temperature range of 40°C to +85°C
• VCC = 5V ± 10%
CY74FCT16952T Features:
• 64 mA sink current, 32 mA source current
• Typical VOLP (ground bounce) <1.0V at VCC = 5V, TA = 25°C
CY74FCT162952T Features:
• Balanced 24 mA output drivers
• Reduced system switching noise
• Typical VOLP (ground bounce) <0.6V at VCC = 5V, TA= 25°C
CY74FCT162H952T Features:
• Bus hold retains last active state
• Eliminates the need for external pull-up or pull-down resistors

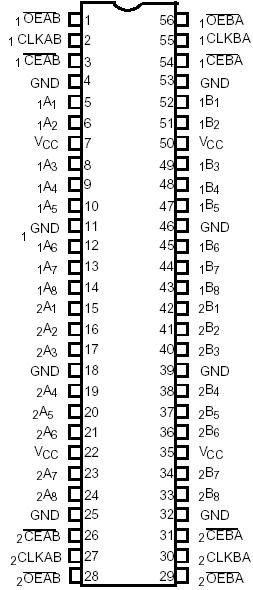

CY74FCT162952T Connection Diagram
CY74FCT162952T
PDF/DataSheet Download
- Datasheet: CY74FCT162952T
- File Size: 70004 KB
- Manufacturer: TI [Texas Instruments]
- Click here to Download
