Features:

• True dual-ported memory cells which allow simultaneous reads of the same memory location
• 16K x 8 organization (CY7C006)
• 16K x 9 organization (CY7C016)
• 0.65-micron CMOS for optimum speed/power
• High-speed access: 15 ns
• Low operating power: ICC = 140 mA (typ.)
• Fully asynchronous operation
• Automatic power-down
• TTL compatible
• Expandable data bus to 16/18 bits or more using Master/Slave chip select when using more than one device
• Busy arbitration scheme provided
• Semaphores included to permit software handshaking between ports
• INT flag for port-to-port communication
• Available in 68-pin PLCC (7C006), 64-pin (7C006) and 80-pin (7C016) TQFP
• Pin compatible and functional equivalent to IDT7006/IDT7016

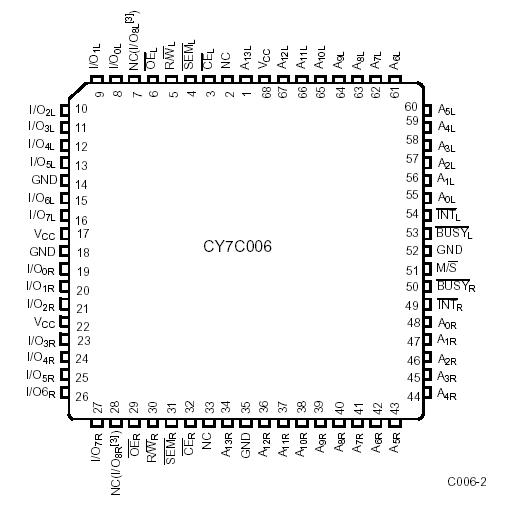

Pinout

  Connection Diagram


Specifications

Storage Temperature ............................ 65°C to +150°C
Ambient Temperature with
Power Applied........................................ 55°C to +125°C
Supply Voltage to Ground Potential ............  0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ..............................................0.5V to +7.0V
DC Input Voltage[4].......................................0.5V to +7.0V
Output Current into Outputs (LOW) ........................... 20 mA
Static Discharge Voltage .......................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.................................................... >200 mA



Description

The CY7C006 and CY7C016 are high-speed CMOS 16K x 8 and 16K x 9 dual-port static RAMs. Various arbitration schemes are included on the CY7C006/016 to handle situations when multiple processors access the same piece of data. Two ports are provided, permitting independent, asynchronous access for reads and writes to any location in memory.

The CY7C006 and CY7C016 can be utilized as a standalone 128-/144-Kbit dual-port static RAM or multiple devices can be combined in order to function as a 16-/18-bit or wider master/ slave dual-port static RAM. An M/S pin is provided for implementing 16-/18-bit or wider memory applications without the need for separate master and slave devices or additional discrete logic. Application areas of CY7C006 and CY7C016 include interprocessor/multiprocessor designs, communications status buffering, and dual- port video/graphics memory.

Each port of CY7C006 and CY7C016 has independent control pins: Chip Enable (CE), Read or Write Enable (R/W), and Output Enable (OE). Two flags, BUSY and INT, are provided on each port. BUSY signals that the port is trying to access the same location currently being accessed by the other port. The Interrupt flag (INT) permits communication between ports or systems by means of a mail box. The semaphores are used to pass a flag, or token, from one port to the other to indicate that a shared resource is in use. The semaphore logic is comprised of eight shared latches. Only one side of CY7C006 and CY7C016 can control the latch (semaphore) at any time. Control of a semaphore indicates that a shared resource is in use. An automatic power-down feature is controlled independently on each port by a Chip Enable (CE) pin or SEM pin.

The CY7C006 and CY7C016 are available in 68-pin PLCC (CY7C006), 64-pin (CY7C006) TQFP, and 80-pin (CY7C016) TQFP.
