CY8C21534

Features: `Powerful Harvard Architecture Processor`M8C Processor Speeds to 24 MHz`Low Power at High Speed`2.4V to 5.25V Operating Voltage`Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)`Industrial Temperature Range: -40°C to +85°C`Advanced Peripherals (PSoC Blocks)`4 Analog Ty...

product image

CY8C21534 Picture
See larger image
SeekIC No. : 004320550 Detail

CY8C21534: Features: `Powerful Harvard Architecture Processor`M8C Processor Speeds to 24 MHz`Low Power at High Speed`2.4V to 5.25V Operating Voltage`Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pu...

CY8C21534 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CY8C21534
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Powerful Harvard Architecture Processor
`M8C Processor Speeds to 24 MHz
`Low Power at High Speed
`2.4V to 5.25V Operating Voltage
`Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
`Industrial Temperature Range: -40°C to +85°C
`Advanced Peripherals (PSoC Blocks)
`4 Analog Type "E" PSoC Blocks Provide:
- 2 Comparators with DAC Refs
- Single or Dual 8-Bit 28 Channel ADC
`4 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Full-Duplex UART, SPI™ Master or Slave
- Connectable to All GPIO Pins
`Complex Peripherals by Combining Blocks
`Flexible On-Chip Memory
`8K Flash Program Storage 50,000 Erase/Write Cycles
`512 Bytes SRAM Data Storage
`In-System Serial Programming (ISSP™)
`Partial Flash Updates
`Flexible Protection Modes
`EEPROM Emulation in Flash
`Complete Development Tools
`Free Development Software (PSoC™ Designer)
`Full-Featured, In-Circuit Emulator and Programmer
`Full Speed Emulation
`Complex Breakpoint Structure
`128K Trace Memory
`Precision, Programmable Clocking
`Internal ±2.5% 24/48 MHz Oscillator
`Internal Oscillator for Watchdog and Sleep
`Programmable Pin Configurations
`25 mA Drive on All GPIO
`Pull Up, Pull Down, High Z, Strong, or Open Drain Drive Modes on All GPIO
`Up to 8 Analog Inputs on GPIO
`Configurable Interrupt on All GPIO
`Versatile Analog Mux
`Common Internal Analog Bus
`Simultaneous Connection of IO Combinations
`Capacitive Sensing Application Capability
`Additional System Resources
`I2C™ Master, Slave and Multi-Master to 400 kHz
`Watchdog and Sleep Timers
`User-Configurable Low Voltage Detection
`Integrated Supervisory Circuit
`On-Chip Precision Voltage Reference


Pinout

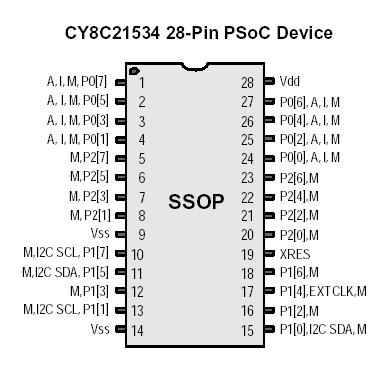

Connection Diagram


Specifications

Symbol Description Min Typ Max Units Notes
TSTG Storage Temperature -55 +100 Higher storage temperatures will reduce data
retention time.
TA Ambient Temperature with Power Applied -40 +85
Vdd Supply Voltage on Vdd Relative to Vss -0.5 +6.0 V
VIO DC Input Voltage Vss- 0.5 Vdd + 0.5 V
VIOZ DC Voltage Applied to Tri-state Vss- 0.5 Vdd + 0.5 V
IMAIO Maximum Current into any Port Pin Configured as Analog
Driver		 -25 +50 mA
ESD Electro Static Discharge Voltage 2000 V Human Body Model ESD
LU Latch-up Current 200 mA
