Product Details

Description



Features:

·Powerful Harvard Architecture Processor
·M8C Processor Speeds to 24 MHz
·8x8 Multiply, 32-Bit Accumulate
·Low Power at High Speed
·3.0 to 5.25 V Operating Voltage
·Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
·Industrial Temperature Range: -40°C to +85°C
·Advanced Peripherals (PSoC Blocks)
·12 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
·8 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Up to 2 Full-Duplex UARTs
- Multiple SPI™ Masters or Slaves
- Connectable to all GPIO Pins
·Complex Peripherals by Combining Blocks
·Precision, Programmable Clocking
·Internal 2.5% 24/48 MHz Oscillator
·24/48 MHz with Optional 32 kHz Crystal
·Optional External Oscillator, up to 24 MHz
Internal Oscillator for Watchdog and Sleep
·Flexible On-Chip Memory
·16K Bytes Flash Program Storage 50,000 Erase/Write Cycles
·256 Bytes SRAM Data Storage
·In-System Serial Programming (ISSP™)
·Partial Flash Updates
·Flexible Protection Modes
·EEPROM Emulation in Flash
·Programmable Pin Configurations
·25 mA Sink on all GPIO
·Pull up, Pull down, High Z, Strong, or Open Drain Drive Modes on all GPIO
·Up to 12 Analog Inputs on GPIO
·Four 30 mA Analog Outputs on GPIO
·Configurable Interrupt on all GPIO
·Additional System Resources
·I2C™ Slave, Master, and Multi-Master to 400 kHz
·Watchdog and Sleep Timers
·User-Configurable Low Voltage Detection
·Integrated Supervisory Circuit
·On-Chip Precision Voltage Reference
·Complete Development Tools
·Free Development Software (PSoC™ Designer)
·Full-Featured, In-Circuit Emulator and Programmer
·Full Speed Emulation
·Complex Breakpoint Structure
·128K Bytes Trace Memory





Pinout

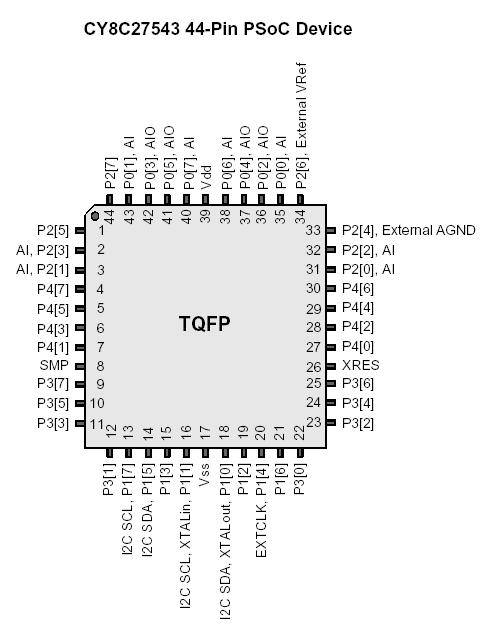

  Connection Diagram


Specifications

Symbol Description Min Typ Max Units Notes
TSTG Storage Temperature -55 +100 Higher storage temperatures will reduce data
retention time.
TA Ambient Temperature with Power Applied -40 +85
Vdd Supply Voltage on Vdd Relative to Vss -0.5 +6.0 V
VIO DC Input Voltage Vss- 0.5 Vdd + 0.5 V
DC Voltage Applied to Tri-state Vss- 0.5 Vdd + 0.5 V
IMIO Maximum Current into any Port Pin -25 +50 mA
IMAIO Maximum Current into any Port Pin Configured as Analog
Driver
-50 +50 mA
ESD Electro Static Discharge Voltage 2000 V Human Body Model ESD
Latch-up Current 200 mA
