Product Details

Description



Features:

·Powerful Harvard Architecture Processor
·M8C Processor Speeds to 24 MHz
·Two 8x8 Multiply, 32-Bit Accumulate
·Low Power at High Speed
·3.0V to 5.25V Operating Voltage
·Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
·Industrial Temperature Range: -40°C to +85°C
·Advanced Peripherals (PSoC Blocks)
·12 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
·16 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Up to 4 Full-Duplex UARTs
- Multiple SPI™ Masters or Slaves
- Connectable to all GPIO Pins
·Complex Peripherals by Combining Blocks
·Precision, Programmable Clocking
·Internal ±2.5% 24/48 MHz Oscillator
·24/48 MHz with Optional 32.768 kHz Crystal
·Optional External Oscillator, up to 24 MHz
·Internal Oscillator for Watchdog and Sleep
·Flexible On-Chip Memory
·32K Bytes Flash Program Storage 50,000 rase/Write Cycles
·2K Bytes SRAM Data Storage
·In-System Serial Programming (ISSP™)
·Partial Flash Updates
·Flexible Protection Modes
·EEPROM Emulation in Flash
·Programmable Pin Configurations
·25 mA Sink on all GPIO
·Pull up, Pull down, High Z, Strong, or Open Dain Drive Modes on all GPIO
·Up to 12 Analog Inputs on GPIO
·Four 40 mA Analog Outputs on GPIO
·Configurable Interrupt on all GPIO
·Additional System Resources
·I2C™ Slave, Master, and Multi-Master to 400kHz
·Watchdog and Sleep Timers
·User-Configurable Low Voltage Detection
·Integrated Supervisory Circuit
·On-Chip Precision Voltage Reference
·Complete Development Tools
·Free Development Software(PSoC™ Designer)
·Full-Featured, In-Circuit Emulator and Pogrammer
·Full Speed Emulation
·Complex Breakpoint Structure
·128K Bytes Trace Memory
·Complex Events
·C Compilers, Assembler, and Linker

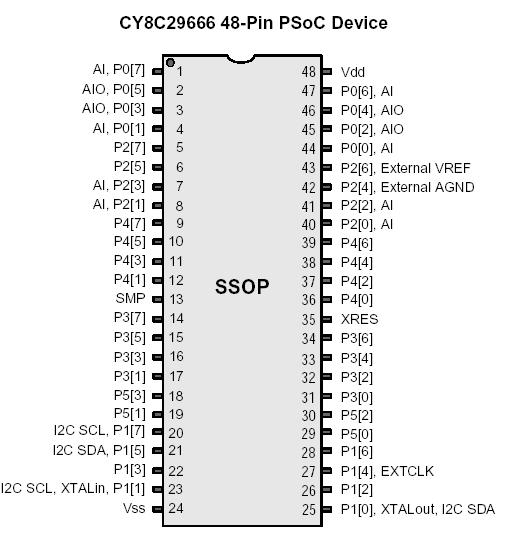

Pinout

Connection Diagram


Specifications

Symbol Absolute Maximum Ratings Min Typical Max Unit Notes
TSTG Storage Temperature -55 - +100 Higher storage temperatures will reduce data
retention time.
TA Ambient Temperature with Power Applied -40 - +85
Vdd Supply Voltage on Vcc Relative to Vss -0.5 - +6.0 V
VIO DC Input Voltage Vss-0.5 - Vcc+0.5 V
DC Voltage Applied to Tri-state Vss-0.5 - Vcc+0.5 V
IMIO Maximum Current into any Port Pin -25 - +50 mA
IMAIO Maximum Current into any Port Pin Configured
as Analog Driver		 -50 - +50 mA
IMAIO Electro Static Discharge Voltage 2000 - - Human Body Model ESD
Latch-up Current - - 200
