CYG2030

Solid State Relays Cybergate DAA Module

product image

CYG2030 Picture
SeekIC No. : 0095814 Detail

CYG2030: Solid State Relays Cybergate DAA Module

floor Price/Ceiling Price

Part Number:
CYG2030
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount

Description

Mounting Style :
Control Voltage Range :
Load Voltage Rating :
Load Current Rating :
Contact Form :
Output Device :
Package / Case :
Product Type : PCB Mount


Features:

• Low distortion transformer signal coupling (0.01% max)
• Complete ring detector circuit
• Low power hookswitch
• Electronic inductor/gyrator circuit
• Surge protection
• Transient protection zeners
• Half- (20X0) or Full- (20X1) Wave Detection
• V.32 bis /V.34 compatible
• FCC Compatible
• Compatible with U.S. and Canadian dial up phone lines
• Supports leased-line operation
• PC board mountable



Application

• Modems
• Fax machines
• Remote data acquisition
• Security systems
• Voice mail systems
• PC motherboard
• Computer telephony
• Process control
• Medical
• PBX
• Direct broadcast satellite



Pinout

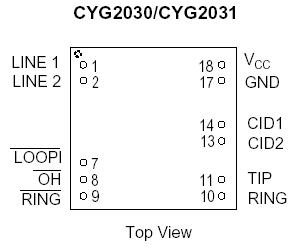

  Connection Diagram




Specifications

Parameter Min Typ Max Units
Isolation Voltage - - 1000 VRMS
Operational Temperature 0 - 70 °C
Storage Temperature 0 - 700 °C
Relative Humidity (Non-Condensing) 10 - 85 %
Soldering Temperature - - 260 °C
Tip/Ring (5, 6) Load current (continuous) - - 120 mA
Hookswitch LED Drive Current - - 50 mA
Hookswitch LED Reverse Voltage - - 5 V
Ring Detect Phototransistor Voltage VCC - - 20 V



Description

The CYG2000/2001/2010/2011/2020/2021/2030/2031 are Data Access Arrangement (DAA) modules featuring a 350V, 120mA, 15Ω relay used for hookswitch, optocoupler with minimum CTR of 33% for ring detection, and a low distortion transformer with 28.8kbps capabilities.


Parameters:

Technical/Catalog InformationCYG2030
VendorClare
CategoryICs, Integrated Circuits, Semiconductors
ApplicationTelecommunication
TypeDAA (Data Access Arrangement)
Mounting TypeThrough Hole
Package NamePCB
Supply Voltage5.00 V [Typ]
PackagingBulk
Operating Temperature0 °C [Min]
Operating Temperature70 °C [Max]
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names CYG2030
CYG2030
