CYM1730

Features: • High-density 1.5M SRAM module• High-speed CMOS SRAMs -Access time of 25 ns• 56-pin, 0.5-inch-high ZIP package• Low active power -2.8W (max. for tAA = 25 ns)• SMD technology• TTL-compatible inputs and outputs• Commercial temperature range•...

product image

CYM1730 Picture
See larger image
SeekIC No. : 004320635 Detail

CYM1730: Features: • High-density 1.5M SRAM module• High-speed CMOS SRAMs -Access time of 25 ns• 56-pin, 0.5-inch-high ZIP package• Low active power -2.8W (max. for tAA = 25 ns)•...

CYM1730 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CYM1730
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-density 1.5M SRAM module
• High-speed CMOS SRAMs
   -Access time of 25 ns
• 56-pin, 0.5-inch-high ZIP package
• Low active power
   -2.8W (max. for tAA = 25 ns)
• SMD technology
• TTL-compatible inputs and outputs
• Commercial temperature range
• Small PCB footprint
   -1.05 sq. in.


Pinout

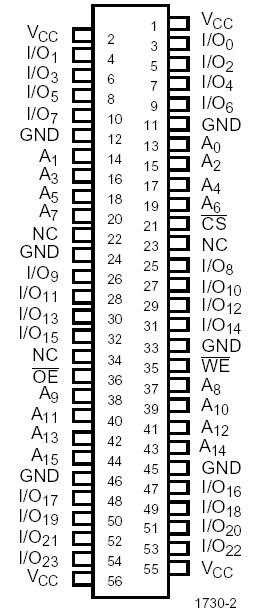

Connection Diagram


Specifications

Storage Temperature ............................. 55°C to +125°C
Ambient Temperature with
Power Applied.............................................10°C to +85°C
Supply Voltage to Ground Potential ............... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ............................................... 0.5V to +7.0V
DC Input Voltage ........................................... 0.5V to +7.0V


Description

The CYM1730 is a high-performance 1.5M static RAM module  organized as 64K words by 24 bits. The  CYM1730 is constructed using six 32K x 8 static RAMs in SOJ packages mounted onto an epoxy laminate board with pins.

Writing to the  CYM1730  is accomplished when the chip select (CS) and write enable (WE) inputs are both LOW. Data on the input/output pins (I/O0 through I/O23) of the device is written into the memory location specified on the address pins (A0 through A15).

Reading the  CYM1730  is accomplished by taking the chip select (CS) and output enable (OE) LOW while write enable (WE) remains HIGH. Under these conditions, the contents of the memory location specified on the address pins will appear on the input/output pins.

The input/output pins of the  CYM1730 remain in a high-impedance state unless the module is selected, outputs are enabled, and write enable is HIGH.
