CYM1846

Features: • High-density 16-megabit SRAM module• 32-bit standard footprint supports from 16Kx32 through 1Mx32• High-speed SRAMs -Access time of 12 ns• Low active power -4.4W (max.) at 12 ns• Compatible with CYM1821, CYM1831, CYM1836, CYM1841, and CYM1851 JEDEC modules...

product image

CYM1846 Picture
See larger image
SeekIC No. : 004320646 Detail

CYM1846: Features: • High-density 16-megabit SRAM module• 32-bit standard footprint supports from 16Kx32 through 1Mx32• High-speed SRAMs -Access time of 12 ns• Low active power -4.4W ...

CYM1846 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CYM1846
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-density 16-megabit SRAM module
• 32-bit standard footprint supports from 16Kx32 through 1Mx32
• High-speed SRAMs
   -Access time of 12 ns
• Low active power
   -4.4W (max.) at 12 ns
• Compatible with CYM1821, CYM1831, CYM1836, CYM1841, and CYM1851 JEDEC modules
• Available in 72-pin ZIP or SIMM/Angled SIMM


Pinout

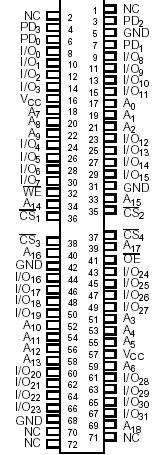

Connection Diagram


Specifications

(Above which the useful life may be impaired. For user guidelines,not tested.)
Storage Temperature ............................55°C to +125°C
Ambient Temperature with
Power Applied..........................................10°C to +85°C
Supply Voltage to Ground Potential .............0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State .............................................0.5V to +VCC
DC Input Voltage .........................................0.5V to +7.0V


Description

The CYM1846 is a high-performance 16-megabit static RAM module organized as 512K words by 32 bits. The CYM1846 is constructed from four 512K x 8 SRAMs in SOJ packages mounted on an epoxy laminate substrate. Four chip selects are used to independently enable the four bytes. Reading or writing can be executed on individual bytes or any combination of multiple bytes through proper use of the chip selects.

The CYM1846 is designed for use with standard 72-pin SIMM socket and ZIP footprint. The pinout of the CYM1846 is compatible with the 64-pin JEDEC ZIP/SIMM module family (CYM1821, CYM1831, CYM1836, and CYM1841) and the 72-pin CYM1851. Thus, a single motherboard design can be used to accommodate memory depth ranging from 16K words (CYM1821) to 1024K words (CYM1851). The standard SIMM can be used in Angled SIMM sockets and is available with either tin-lead or 10 micro-inches of gold flash on the edge contacts.

Presence detect pins (PD0 PD3) are used to identify module memory density in applications where the CYM1846 with alternate word depths can be interchanged.
