CYM74C430

Features: · Pin-compatible secondary cache module family that adheres to the Intel® COAST 1.2 specification· Asynchronous (CYM74C430) configuration with presence and configuration detect pins· Ideal for Intel P54C-based systems with the 82430FX (Triton™) chipset· Operates at 50, 60, and ...

product image

CYM74C430 Picture
See larger image
SeekIC No. : 004320658 Detail

CYM74C430: Features: · Pin-compatible secondary cache module family that adheres to the Intel® COAST 1.2 specification· Asynchronous (CYM74C430) configuration with presence and configuration detect pins· I...

CYM74C430 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CYM74C430
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Pin-compatible secondary cache module family that adheres to the Intel® COAST 1.2 specification
· Asynchronous (CYM74C430) configuration with presence and configuration detect pins
· Ideal for Intel P54C-based systems with the 82430FX (Triton™) chipset
· Operates at 50, 60, and 66 MHz
· Uses cost-effective CMOS asynchronous SRAMs.
· 160-position Burndy DIMM CELP2X80SC3Z48 connector
· 3.3V compatible inputs/data outputs


Pinout

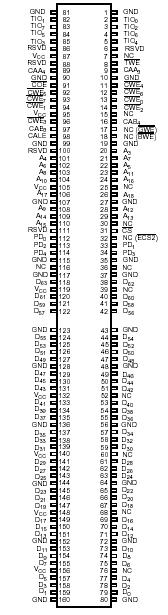

Connection Diagram


Specifications

Storage Temperature .......................... 55°C to +125°C
Ambient Temperature
with Power Applied .................................. 0°C to +70°C
5V Supply Voltage to Ground Potential...... 0.5V to +5.25V
DC Voltage Applied to Outputs
in High Z State .............................................0.5V to +4.6V
DC Input Voltage .........................................0.5V to +4.6V
Output Current into Outputs (LOW)........................... 20 mA


Description

This secondary cache module,for example,CYM74C430 is designed for Intel P54C systems with the 82430FX (Triton) chip set. CYM74C430 is an asynchronous 256-Kbyte cache module that provides a low-cost, high-performance solution using 5V SRAMs with outputs clamped to 3.3V.

The CYM74C430 is organized as 32K by 64 data with an 8Kx8 tag that supports 3-2-2-2 reads and 4-2-2-2 writes at 66 MHz.Multiple ground pins and on-board decoupling capacitors ensure high performance with maximum noise immunity.

All components on the cache module,the CYM74C430 is surface mounted on a multi-layer epoxy laminate (FR-4) substrate. All inputs and data outputs of the CYM74C430 are (3.3V) TTL compatible. The contact pins of the module are plated with 150 micro-inches of nickel covered by 30 micro-inches of gold.
