General Description
CYM76S684 General Description
These cache modules are designed for systems based on the Power PC processors. These modules are specifically designed for the Tsunami Catalyst type of Power PC machines. The modules are based on the Cypress high performance 64K x 18 flow through Synchronous Burst SRAMs.
Multiple ground pins and on-board decoupling capacitors ensure high performance with maximum noise immunity.
All components on the cache modules are surface mounted on a multi-layer epoxy laminate (FR-4) substrate. The contact pins are plated with 150 micro-inches of nickel covered by 30 micro-inches of gold.
CYM76S684 Maximum Ratings
Storage Temperature ............................ 55°C to +125°C
Ambient Temperature
with Power Applied ................................... 0°C to +70°C
3.3V Supply Voltage to Ground Potential..... 0.5V to +4.6V
5V Supply Voltage to Ground Potential........ 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ........................................... 0.5V to +4.6V
DC Input Voltage ........................................0.5V to +4.6V
Output Current into Outputs (LOW).......................... 20 mA
Ambient Temperature
with Power Applied ................................... 0°C to +70°C
3.3V Supply Voltage to Ground Potential..... 0.5V to +4.6V
5V Supply Voltage to Ground Potential........ 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State ........................................... 0.5V to +4.6V
DC Input Voltage ........................................0.5V to +4.6V
Output Current into Outputs (LOW).......................... 20 mA
CYM76S684 Features
• High-performance cache modules based on synchronous 64K x 18 data BSRAM
• Operates at 50, 60, and 66 MHz
• 160-position DIMM module
• 3.3V data inputs/outputs
• Operates at 50, 60, and 66 MHz
• 160-position DIMM module
• 3.3V data inputs/outputs

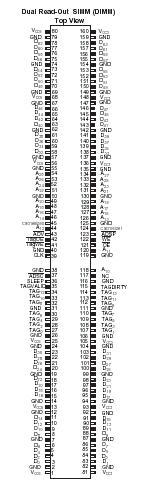

CYM76S684 Connection Diagram
CYM76S684
PDF/DataSheet Download
- Datasheet: CYM76S684
- File Size: 121481 KB
- Manufacturer: Cypress
- Click here to Download
