Purchase CYM9262A, In-stock CYM9262A From SeekIC.
Part Number: CYM9262A
Description: The CYM9260, CYM9261, CYM9262, and the CYM9263 are high-performance synchronous m...
- Table of contents:
CYM9262A
-
Suppliers
DataSheet
General Description
CYM9262A General Description
The CYM9260, CYM9261, CYM9262, and the CYM9263 are high-performance synchronous memory modules organized as 64K(9260), 128K(9261), 256K(9262), or 512K(9263) by 72 bits. These modules are constructed from either 128K x 18(9260,9261B,9262A) or 256K x 18 (9263) SRAMs in plastic surface mount packages on an epoxy laminate board with pins. The modules are designed to be incorporated into large memory arrays.
The module is configured as either one or two banks, where each bank has separate chip select and output enable controls. Separate clocks are provided for every pair of SRAMs's.
Multiple ground pins and on-board decoupling capacitors ensure high performance with maximum noise immunity.
All components on the cache modules are surface mounted on a multi-layer epoxy laminate (FR-4) substrate. The contact pins are plated with 150 micro-inches of nickel covered by 30 micro-inches of gold flash.
CYM9262A Maximum Ratings
Storage Temperature ................................................... 55°C to +125°C
Ambient Temperature with Power Applied ........................ 0°C to +70°C
3.3V Supply Voltage to Ground Potential ............................. 0.5V to +4.5V
DC Voltage Applied to Outputs in High Z State .................... 0.5V to +4.6V
DC Input Voltage .................................................................. 0.5V to +4.6V
Output Current into Outputs (LOW)..................................................... 20 mA
Ambient Temperature with Power Applied ........................ 0°C to +70°C
3.3V Supply Voltage to Ground Potential ............................. 0.5V to +4.5V
DC Voltage Applied to Outputs in High Z State .................... 0.5V to +4.6V
DC Input Voltage .................................................................. 0.5V to +4.6V
Output Current into Outputs (LOW)..................................................... 20 mA
CYM9262A Features
• Operates at 66 MHz
• Uses 64K x 18, 128K x 18, or 256K x 18 high performance synchronous SRAMs
• 168-position Angled DIMM from Amp p/n 179508-2
• 3.3V inputs/data outputs
• Uses 64K x 18, 128K x 18, or 256K x 18 high performance synchronous SRAMs
• 168-position Angled DIMM from Amp p/n 179508-2
• 3.3V inputs/data outputs

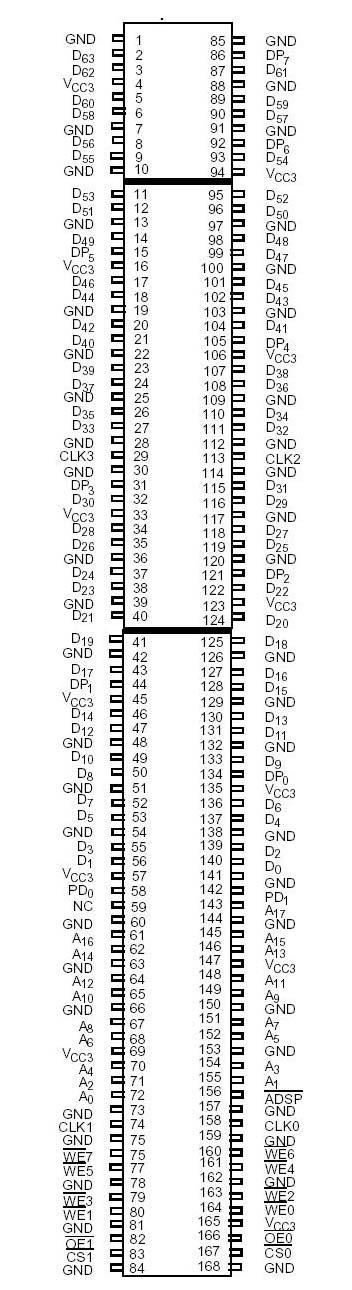

CYM9262A Connection Diagram
CYM9262A
PDF/DataSheet Download
- Datasheet: CYM9262A
- File Size: 212355 KB
- Manufacturer: CYPRESS [Cypress Semiconductor]
- Click here to Download
