CYW2331

Features: • Operating voltage: 2.7V to 5.5V• PLL1 operating frequency:-2.0 GHz with prescaler ratios of 64/65 and 128/129• PLL2 operating frequency:-600 MHz with prescaler ratios of 8/9 and 16/17• Lock detect feature• Available in a 20-pin TSSOP (Thin Shrink Small Out...

product image

CYW2331 Picture
See larger image
SeekIC No. : 004320706 Detail

CYW2331: Features: • Operating voltage: 2.7V to 5.5V• PLL1 operating frequency:-2.0 GHz with prescaler ratios of 64/65 and 128/129• PLL2 operating frequency:-600 MHz with prescaler ratios o...

CYW2331 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CYW2331
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage: 2.7V to 5.5V
• PLL1 operating frequency:
-2.0 GHz with prescaler ratios of 64/65 and 128/129
• PLL2 operating frequency:
-600 MHz with prescaler ratios of 8/9 and 16/17
• Lock detect feature
• Available in a 20-pin TSSOP (Thin Shrink Small Outline Package)
• Available in a 24-pin CSP (Chip Scale Package)
• Available in a 20-pin MLF (Mirco Lead Frame Package)


Application

The Cypress CYW2331 is a dual serial input PLL frequency synthesizer which includes a 2.0-GHz RF and a 600-MHz IF dual modulus prescaler to combine the RF and IF mixer frequency sections of wireless communication systems. The synthesizer is designed for cordless/cellular telephone systems, cable TV tuners, WLANs and other wireless communication systems. The device operates from 2.7V and dissipates only 24 mW.


Pinout

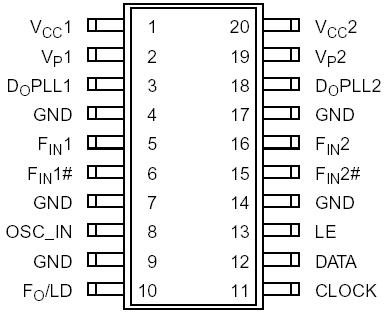

Connection Diagram


Specifications

Parameter Description Rating Unit
VCC or VP Power Supply Voltage 0.5 to +6.5 V
VOUT Output Voltage 0.5 to VCC+0.5 V
IOUT Output Current ±15 mA
TL Lead Temperature +260 °C
TSTG Storage Temperature 55 to +150 °C
