Product Details

Description

Features:

• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 16 dB MINIMUM

Application

• HF/VHF COMMUNICATIONS from 1 MHz to 175 MHz

Pinout

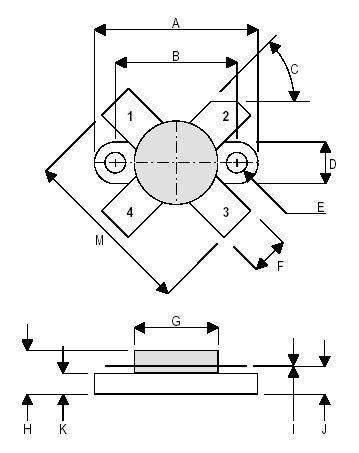

Connection Diagram

Specifications

P_D	Power Dissipation	117W
BV_DSS	Drain-source breakdown voltage	70V
BV_GSS	Gate-source breakdown voltage	±20V
I_D(sat)	Drain Current	15A
T_stg	Storage temperature	-65 to 150°C
T_j	Maximum operating junction temperature	200°C

Description

The ceramic portion of the device,the D1003UK between leads and metal flange is beryllium oxide. Beryllium oxide dust is highl toxic and care must be taken during handling and mounting to avoid damage to this area.
