Part Number: D1207UK
MFG: SEME-LAB
Description: The ceramic portion of the device between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly tox...
- Table of contents:
D1207UK
-
Suppliers
DataSheet
General Description
D1207UK General Description
The ceramic portion of the device between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly toxic and care must be taken during handling and mounting to avoid damage to this area.
D1207UK Maximum Ratings
| PD | Power Dissipation | 175W |
| BVDSS | Drain Source Breakdown Voltage* | 40V |
| BVGSS | Gate Source Breakdown Voltage* | ±20V |
| ID(sat) | Drain Current* | 10A |
| Tstg | Storage Temperature | 65 to 150°C |
| Tj | Maximum Operating Junction Temperature | 200°C |
D1207UK Features
• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• VERY LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 10 dB MINIMUM
• SUITABLE FOR BROAD BAND APPLICATIONS
• VERY LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 10 dB MINIMUM
D1207UK Typical Application
• HF/VHF/UHF COMMUNICATIONS from 1 MHz to 500 MHz

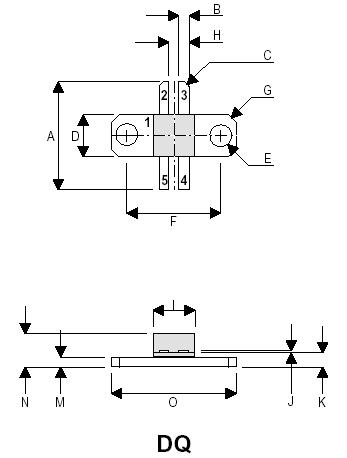

D1207UK Connection Diagram
D1207UK
