Part Number: D1260UK
MFG: SEME-LAB
Description: The ceramic portion of the device between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly tox...
- Table of contents:
D1260UK
-
Suppliers
DataSheet
General Description
D1260UK General Description
The ceramic portion of the device between leads and metal flange is beryllium oxide. Beryllium oxide dust is highly toxic and care must be taken during handling and mounting to avoid damage to this area.
D1260UK Maximum Ratings
| PD | Power Dissipation | 175W |
| BVDSS | Drain Source Breakdown Voltage | 40V |
| BVGSS | Gate Source Breakdown Voltage | ±20V |
| ID(sat) | Drain Current | 40A |
| Tstg | Storage Temperature | 65 to 150°C |
| Tj | Maximum Operating Junction Temperature | 200°C |
D1260UK Features
• SIMPLIFIED AMPLIFIER DESIGN
• SUITABLE FOR BROAD BAND APPLICATIONS
• LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 10 dB MINIMUM
• SUITABLE FOR BROAD BAND APPLICATIONS
• LOW Crss
• SIMPLE BIAS CIRCUITS
• LOW NOISE
• HIGH GAIN 10 dB MINIMUM
D1260UK Typical Application
• HF/VHF/UHF COMMUNICATIONS from 1 MHz to 175 MHz

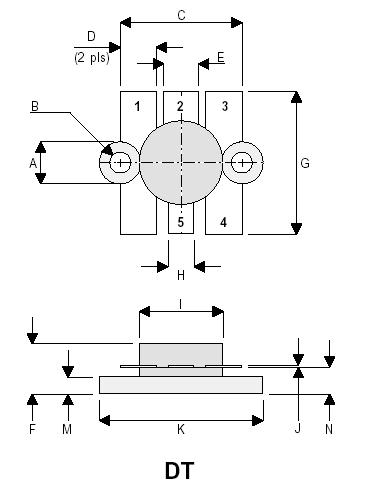

D1260UK Connection Diagram
D1260UK
PDF/DataSheet Download
- Datasheet: D1260UK
- File Size: 17078 KB
- Manufacturer: SEME-LAB [Seme LAB]
- Click here to Download
