General Description
D155Ms General Description
The HFCT-5215 transceiver is a high performance, cost effective module for serial optical data communications applications specified for a signal rate of 155 MBd. It is designed to provide a SONET/SDH compliant link for 155 Mb/s long reach links.
This module is designed for single mode fiber and operates at a nominal wavelength of 1300 nm. It incorporates Agilent's high performance, reliable, long wavelength optical devices and proven circuit technology to give long life and consistent service.
The transmitter section uses a Multiple Quantum Well laser with full IEC 825 and CDRH Class I eye safety.
The receiver section uses a planar PIN photodetector for low dark current and excellent responsivity.
A pseudo-ECL logic interface simplifies interface to external circuitry.
D155Ms Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause catastrophic damage to the device. Limits apply to each parameter in isolation, all other parameters having values within the recommended operating conditions. It should not be assumed that limiting values of more than one parameter can be applied to the product at the same time. Exposure to the absolute maximum ratings for extended periods can adversely affect device reliability.
| Parameter | Symbol | Minimum | Maximum | Unit | Notes |
| Storage Temperature | TS | -40 | +85 | - | |
| Operating Temperature | - | 0 | +70 | 1 | |
| Lead Soldering Temperature/Time | - | - | +260/10 | /s | - |
| Output Current (other outputs) | IOUT | 0 | 30 | mA | - |
| Input Voltage | - | GND | VCC | V | - |
| Power Supply Voltage | - | 0 | +6 | V | - |
D155Ms Features
• SC duplex single mode transceiver
• Long reach SONET OC3 SDH STM1 (L1.1) compliant
• Single +5 V power supply
• Multisourced 1 x 9 pin package style
• Aqueous washable plastic package
• Interchangeable with LED multisourced 1 x 9 transceivers
• Unconditionally eye safe laser IEC 825/CDRH Class 1 compliant
• Long reach SONET OC3 SDH STM1 (L1.1) compliant
• Single +5 V power supply
• Multisourced 1 x 9 pin package style
• Aqueous washable plastic package
• Interchangeable with LED multisourced 1 x 9 transceivers
• Unconditionally eye safe laser IEC 825/CDRH Class 1 compliant
D155Ms Typical Application
• ATM 155 Mb/s links
• SONET OC-3/SDH STM-1 interconnections
• SONET OC-3/SDH STM-1 interconnections

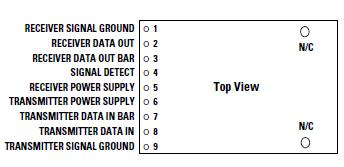

D155Ms Connection Diagram
D15
