Part Number: D6571E
Description: namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
The D6571E chip is a digital speech/sig...
- Table of contents:
D6571E
-
Suppliers
DataSheet
General Description
D6571E General Description
namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" />
The D6571E chip is a digital speech/signal processing subsystem that implements all functions of TRUESPEECH, speech compression and voice prompts, telephone line signal processing, flash memory management and True FULL Duplex SpeakerPhone' for an all digital answering machine. The D6571E is fully controlled by the system HOST through a simple interface protocol. The HOST processor provides activation and control of all system functions such as speech recording and playback, DTMF and call progress tone detection, DTMF and tone generation, and voice prompting.
The fully digital solution has no moving parts, yielding high reliability. The chip's programmability enables a full range of answering, recording and playback features for the end user. The D6571E is a single-chip, digital signal processor that includes all of the necessary circuitry to interface with an external HOST, flash memory, and codec.
D6571E Maximum Ratings
| Supply voltage range, VCC |
-0.3 V to 7 V |
| Input voltage range |
-0.3 V to 7 V |
| Output voltage range |
-0.3 V to 7 V |
| Operating free-air temperature range |
0 to 70 |
| Storage temperature range |
-55 to 150 |
D6571E Features
Superior quality TRUESPEECH, Triple Rate Coder allowing selectable 11, 15 or 25 minutes of recording time per each 4 Mbit Flash Memory
PCM Recording
Flexible storage of incoming messages (ICM), outgoing messages (OGM). Supports multiple OGMs and multiple mailboxes.
TRUESPEECH,, natural-sound voice prompting, for Day/Time stamp and voice instructions
FLEXISPEECH' variable speed, natural sound playback (50% - 200%)
DTMF generation and detection with near-end echo cancellation for superior performance
Extended DTMF detection (A, B, C, D)
Automatic Gain Control
True FULL Duplex SpeakerPhone' with both acoustical and near-end echo cancellation
Caller ID and Call Waiting CID demodulation (both Bell 202 and V.23)
FSK modem for CID and a-5 support
Supports 4 Mb or 16 Mb Flash Memory Devices
Supports Time Stamp (message tag) modification
Programmable DTMF, CPT, VOX, CAS, and FSK Detectors Sensitivity
Digital Volume Control
m-law and A-law codec support, selectable Master and Slave mode, selectable sampling rate.
General Purpose (CID) and Non-Erasable Storages

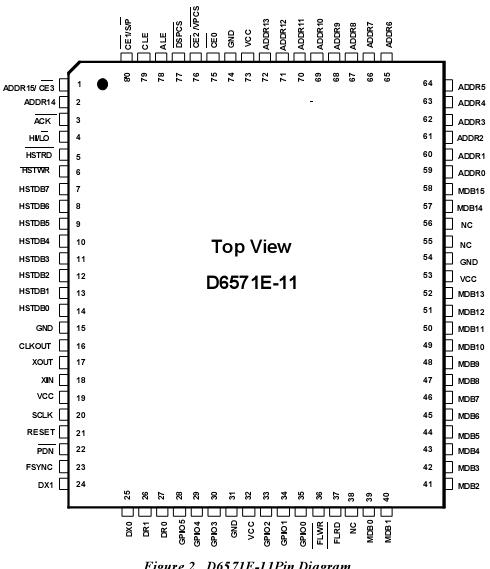

D6571E Connection Diagram
D6571E
