Purchase D7088, In-stock D7088 From SeekIC.
MFG:0+ Package Cooled:SMD16
Part Number: D7088
MFG: 0+
Package Cooled: SMD16
Description: The D7088 is a bipolar integrated circuit for use in mono portable and pocket radios. It is used when ...
- Table of contents:
D7088
-
Suppliers
DataSheet
General Description
D7088 General Description
The D7088 is a bipolar integrated circuit for use in mono portable and pocket radios. It is used when a minimum of peripheral components (of small dimensions and low costs) is important. The circuit contains a frequency-locked-loop (FLL) system with an Intermediate Frequency (IF) of about 70kHz. Selectivity is achieved by active RC-filters. De-tuning related to the IF and too weak input signals is suppressed by the mute circuit.
D7088 Features
Equipped with all stages of a mono receiver from antenna to audio output
Mute circuit
Search tuning with a single varicap diode
Mechanical tuning with Integrating AFC
AM application supported
Power supply polarity protection
Power supply voltage down to 1.8V.
Package: SOP16
Mechanical tuning; this is possible with or without integrating AFC circuit
Electrical tuning; this is realized by one directional (band-up) search tuning facility, including RESET to the lower-band limit.
Mute circuit
Search tuning with a single varicap diode
Mechanical tuning with Integrating AFC
AM application supported
Power supply polarity protection
Power supply voltage down to 1.8V.
Package: SOP16
Mechanical tuning; this is possible with or without integrating AFC circuit
Electrical tuning; this is realized by one directional (band-up) search tuning facility, including RESET to the lower-band limit.
D7088 Typical Application
Mechanical tuning; this is possible with or without integrating AFC circuit.
Electrical tuning; this is realized by one directional (band-up) search tuning
Electrical tuning; this is realized by one directional (band-up) search tuning

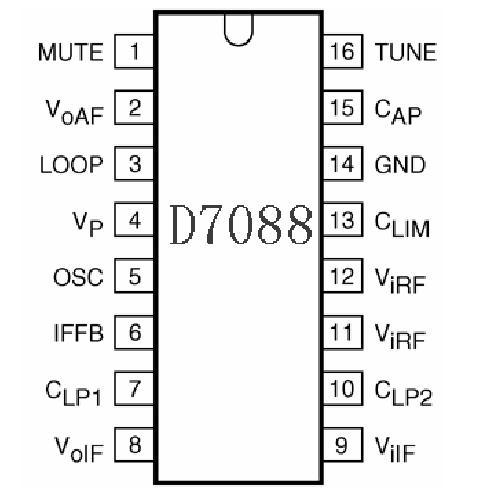

D7088 Connection Diagram
D7088
PDF/DataSheet Download
- Datasheet: D7088
- File Size: 166812 KB
- Manufacturer: Shaoxing Silicore
- Click here to Download
