Purchase D7231, In-stock D7231 From SeekIC.
MFG:ETC D/C:DIP
Part Number: D7231
MFG: ETC
D/C: DIP
Description: The D7231 is a monolithic integrated circuit in 4 + 4 lead minidip package. It is intended for use in ...
- Table of contents:
D7231
-
Suppliers
DataSheet
General Description
D7231 General Description
The D7231 is a monolithic integrated circuit in 4 + 4 lead minidip package. It is intended for use in black and white TV receivers and monitors and also use as class AB power amplifier with wide range of supply voltage in portable radios, cassette recorders and players, etc.
D7231 Maximum Ratings
| Characteristic |
|
Symbol |
Value |
Unit |
| Supply Voltage |
|
Vcc |
16 |
V |
| Total Power Dissipation |
Tamb=50°C |
PD |
1.25 |
W |
|
Tamb=70°C |
|
4 |
°C | |
| Output Peak Current |
|
Io |
4 |
|
| Storage and Junction Temperature |
Tstg,Tj |
-40~150 |
|
D7231 Features
Operating Voltage 1.8 To 15 V
Low Quiescent Current
High Power Capability
Low Crossover Distortion
Soft Clipping

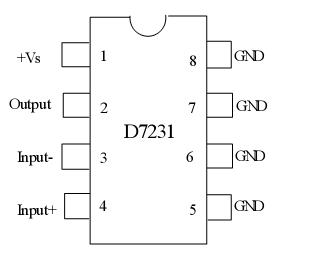

D7231 Connection Diagram
D7231
PDF/DataSheet Download
- Datasheet: D7231
- File Size: 112666 KB
- Manufacturer: ETC [ETC]
- Click here to Download
